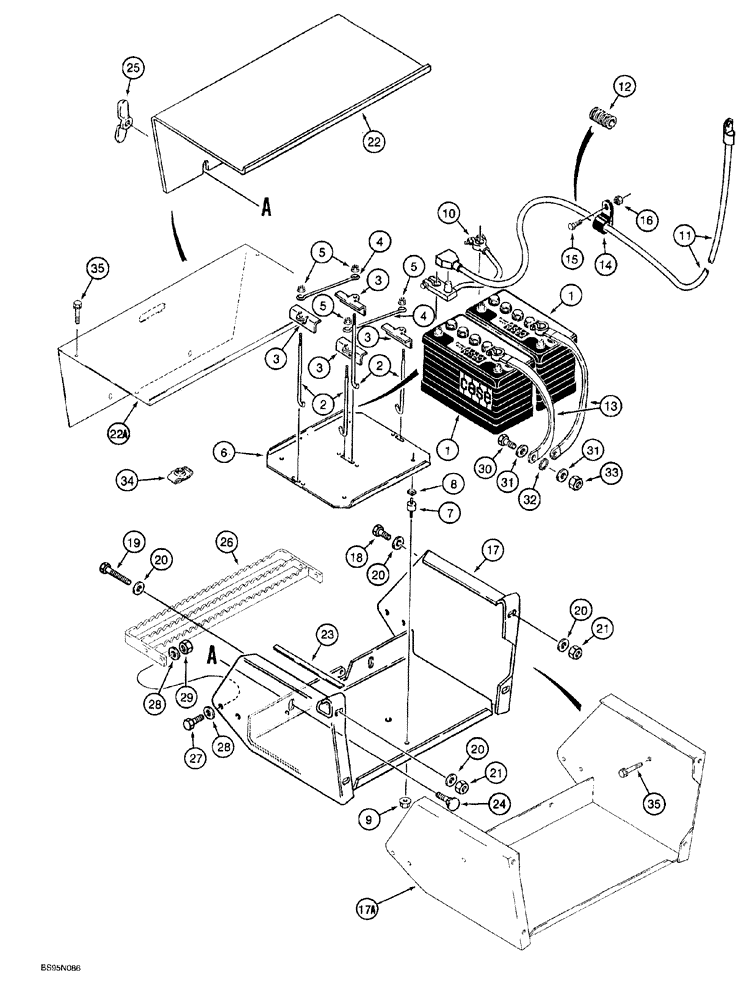

Запчасти Case 760 (04-018) - BATTERY, MOUNTING, AND CABLES, DUAL BATTERY COLD START SYSTEM, P.I.N. JAF0022844 AND AFTER AND ALL (55) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY DRY 12 volt, service replacement

2шт.

See Fig. 4-014 for models without the dual battery cold start system

1шт.

2

H436311

BOLT

J-type, special, battery hold-down

4шт.

3

D125079

BRACKET

battery hold-down

4шт.

4

D135073

BRACKET

ROD, battery hold-down

4шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

H673486

LARGE PLATE

PLATE, LARGE TRAY battery

1шт.

7

H359216

MOUNTING PARTS

INSULATOR battery tray

4шт.

8

224-2205

SQUARE NUT,Sq, 5/16"-24

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

10

H433512

CABLE

battery to battery, positive jumper

1шт.

11

H433291

CABLE

battery, positive

1шт.

12

H434808

LOOM

CONDUIT, 65 inch (1650 mm) long, cut from D99461 bulk roll, see below, positive cable

1шт.

13

D83485

CABLE,300mm L

STRAP battery, negative ground

2шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Positive battery cable

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

16

232-4116

NUT,3/8"-16, GC

1шт.

17

H672376

BRACKET

battery mounting, no longer available, order Ref. 17A, H674882

1шт.

17a

H674882

BRACKET

battery mounting

1шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

19

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

1шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

21

232-4118

NUT,1/2"-13, GC

4шт.

22

H433889

COVER

battery, used with Ref. 17, H672376 bracket

1шт.

22a

H438914

COVER

battery, used with Ref. 17A, H674882 bracket

1шт.

23

H433912

RUBBER STRIP

1/2 (12) x 1/8 (3) x 12 inch (300 mm) long, cut from D91137, see below

2шт.

24

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

Used with Ref. 17, H672376 bracket and Ref. 22A, H433889 cover

2шт.

25

H434384

WING NUT

special, 3/8 inch NC, used wtih Ref. 17, H672376 bracket and Ref. 22A, H433889 cover

2шт.

26

H672373

STEP

operators compartment access

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

8шт.

29

232-4116

NUT,3/8"-16, GC

4шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

31

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

32

493-41039

LOCK WASHER,Ext Tooth, 3/8"

2шт.

33

232-4116

NUT,3/8"-16, GC

2шт.

34

H346650

NUT

U-type, 5/16 inch NC, used with Ref. 16A, H674882 bracket and Ref. 21A, H438914 cover

6шт.

35

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used with Ref. 16A, H674882 bracket and Ref. 21A, H438914

6шт.

D99461

LOOM

CONDUIT, bulk, 80 inch (2032 mm) long

1шт.

D91137

STRIP

bulk, 1/2 (12) x 1/8 (3) x 24 inch (600 mm) long

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.
