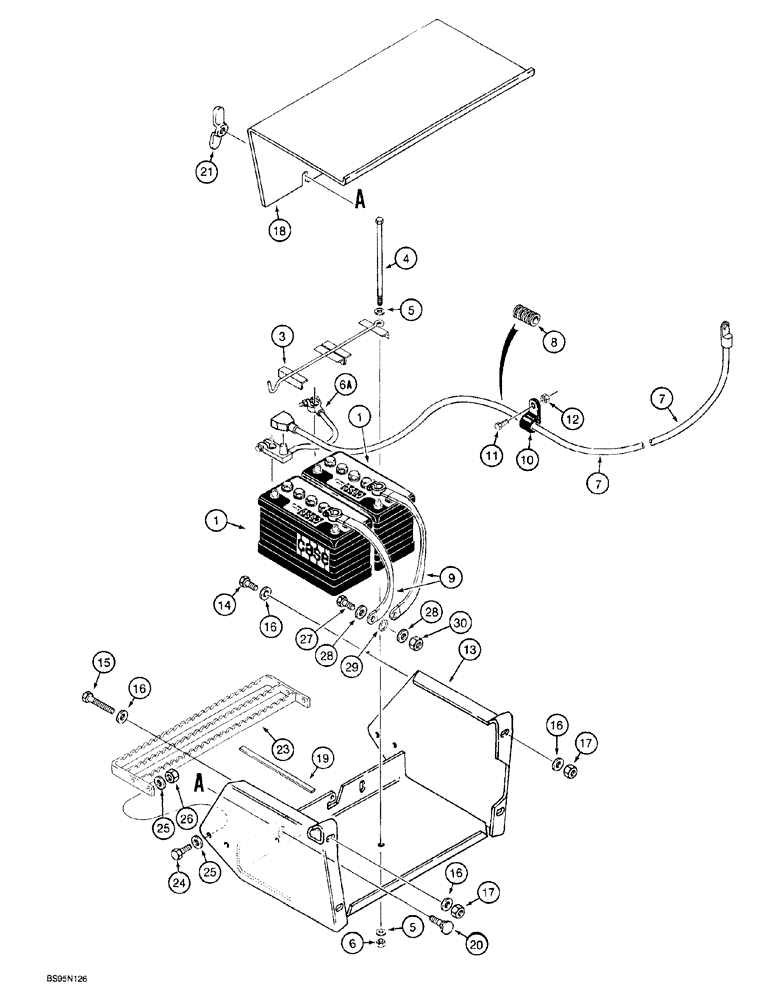

Запчасти Case 760 (04-016) - BATTERY, MOUNTING, AND CABLES, DUAL BATTERY COLD START SYSTEM, PRIOR TO P.I.N. JAF0022844 & W/O FLOW (55) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY DRY 12 volt, service replacement

2шт.

See Fig. 4-012 for models without the dual battery cold start system

1шт.

3

H672397

SUPPORT

BRACKET, battery hold-down

1шт.

4

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

1шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

6

232-4116

NUT,3/8"-16, GC

1шт.

6a

H433512

CABLE

battery to battery, positive jumper

1шт.

7

H433291

CABLE

battery, positive

1шт.

8

H434808

LOOM

CONDUIT, 65 inch (1650 mm) long, cut from D99461 bulk roll, see below, positive cable

1шт.

9

D83485

CABLE,300mm L

STRAP battery, negative ground

2шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

12

232-4116

NUT,3/8"-16, GC

1шт.

13

H672376

BRACKET

battery mounting, no longer available, see Refs. 17A, 22A, 34 and 35 on Fig. 4-018

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

15

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

1шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

17

232-4118

NUT,1/2"-13, GC

4шт.

18

H433889

COVER

battery

1шт.

19

H433912

RUBBER STRIP

1/2 (12) x 1/8 (3) x 12 inch (300 mm) long, cut from D91137, see below

2шт.

20

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

21

H434384

WING NUT

special, 3/8 inch NC

2шт.

23

H672373

STEP

operators compartment access

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

8шт.

26

232-4116

NUT,3/8"-16, GC

4шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

28

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

29

493-41039

LOCK WASHER,Ext Tooth, 3/8"

2шт.

30

232-4116

NUT,3/8"-16, GC

2шт.

D99461

LOOM

CONDUIT, bulk, 80 inch (2032 mm) long

1шт.

D91137

STRIP

bulk, 1/2 (12) x 1/8 (3) x 24 inch (600 mm) long

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.
