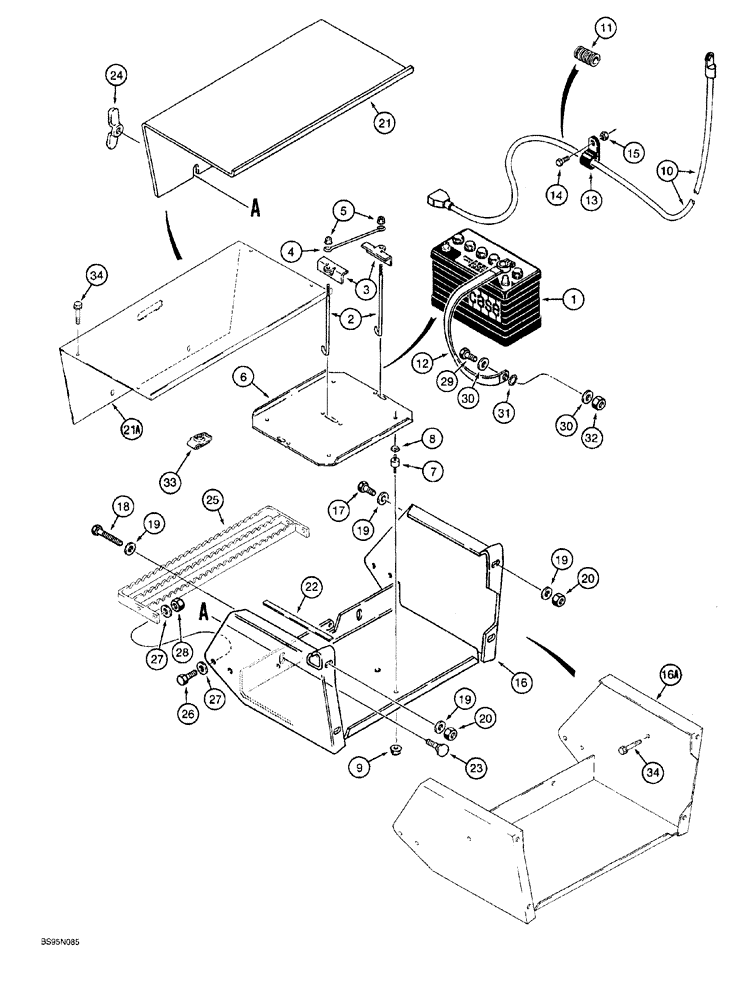

Запчасти Case 760 (04-014) - BATTERY, MOUNTING, AND CABLES, P.I.N. JAF0022844 AND AFTER AND ALL PLOW UNITS (55) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY DRY 12 volt, service replacement

1шт.

See Fig. 4-019 for models equipped with the dual battery cold start system

1шт.

2

H436311

BOLT

J-type, special, battery hold-down

2шт.

3

D125079

BRACKET

battery hold-down

2шт.

4

D135073

BRACKET

ROD, battery hold-down

1шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

H673486

LARGE PLATE

PLATE, LARGE TRAY battery

1шт.

7

H359216

MOUNTING PARTS

INSULATOR battery tray

4шт.

8

224-2205

SQUARE NUT,Sq, 5/16"-24

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

10

H433291

CABLE

battery, positive

1шт.

11

H434808

LOOM

CONDUIT, 65 inch (1650 mm) long, cut from D99461 bulk roll, see below

1шт.

12

D83485

CABLE,300mm L

STRAP, battery, negative ground

1шт.

13

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Positive battery cable

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

15

232-4116

NUT,3/8"-16, GC

1шт.

16

H672376

BRACKET

battery mounting, no longer available, order Ref. 16A, H674882

1шт.

16a

H674882

BRACKET

battery mounting

1шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

18

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

1шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

20

232-4118

NUT,1/2"-13, GC

4шт.

21

H433889

COVER

battery, used with Ref. 16, H672376 bracket

1шт.

21a

H438914

COVER

battery, used with Ref. 16A, H674882 bracket

1шт.

22

H433912

RUBBER STRIP

1/2 (12) x 1/8 (3) x 12 inch (300 mm) long, cut from D91137, see note

2шт.

23

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

Used with Ref. 16, H672376 bracket and Ref. 21, H433889 cover

2шт.

24

H434384

WING NUT

special, 3/8 inch NC, used with Ref. 16, H672376 bracket and Ref. 21, H433889 cover

2шт.

25

H672373

STEP

operators compartment access

1шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

8шт.

28

232-4116

NUT,3/8"-16, GC

4шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

30

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

31

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

32

232-4116

NUT,3/8"-16, GC

1шт.

33

H346650

NUT

U-type, 5/16 inch NC, used with Ref. 16A, H674882 bracket and Ref. 21A, H438914 cover

6шт.

34

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used with Ref. 16A, H674882 bracket and Ref. 21A, H438914 cover

6шт.

D99461

LOOM

CONDUIT, bulk, 80 inch (2032 mm) long

1шт.

D91137

STRIP

bulk, 1/2 (12) x 1/8 (3) x 24 inch (600 mm) long

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.
