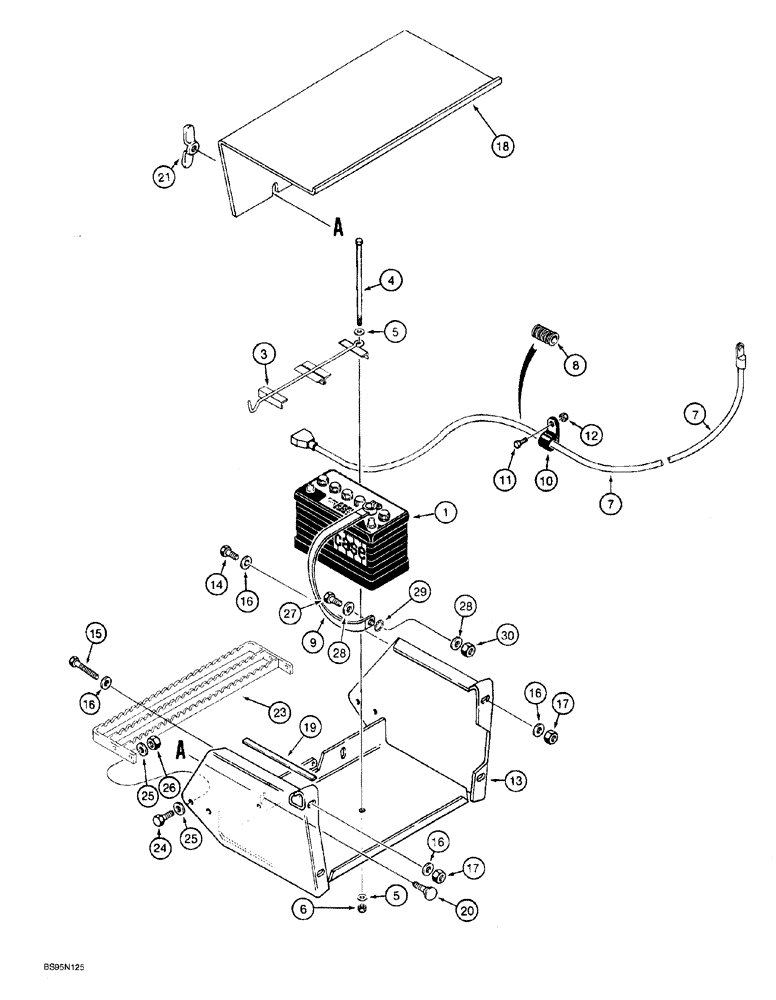

Запчасти Case 760 (04-012) - BATTERY, MOUNTING, AND CABLES, PRIOR TO P.I.N. JAF0022844 (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
BHC30
BATTERY, DRY
BATTERY DRY 12 volt, service replacement
1шт.
See Fig. 4-016 for models equipped with the dual battery cold start system
1шт.
3
H672397
SUPPORT
BRACKET battery hold-down
1шт.
4
424-6160
BOLT,Hex, 3/8" - 16 x 10", Gr 2
1шт.
5
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
2шт.
6
232-4116
NUT,3/8"-16, GC
1шт.
7
H433291
CABLE
battery, positive
1шт.
8
H434808
LOOM
CONDUIT, 65 inch (1650 mm) long, cut from D99461 bulk roll, see below, positive cable
1шт.
9
D83485
CABLE,300mm L
STRAP battery, negative ground
1шт.
10
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
P-type, Positive battery cable
1шт.
11
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
12
232-4116
NUT,3/8"-16, GC
1шт.
13
H672376
BRACKET
battery mounting, no longer available, see Refs. 16A, 21A, 33 and 34 on Fig. 4-14
1шт.
14
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
3шт.
15
113-409
BOLT,Hex, 1/2" - 13 x 4", Gr 5
hex, 1/2 NC x 4 inch
1шт.
16
496-21053
WASHER,17/32" x 1 1/16" x .134"
Hardened
8шт.
17
232-4118
NUT,1/2"-13, GC
4шт.
18
H433889
COVER
battery
1шт.
19
H433912
RUBBER STRIP
1/2 (12) x 1/8 (3) x 12 inch (300 mm) long, cut from D91137
2шт.
20
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
2шт.
21
H434384
WING NUT
special, 3/8 inch NC
2шт.
23
H672373
STEP
operators compartment access
1шт.
24
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
4шт.
25
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
8шт.
26
232-4116
NUT,3/8"-16, GC
4шт.
27
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
28
496-21041
WASHER,13/32" x 13/16" x .089", HDN
2шт.
29
493-41039
LOCK WASHER,Ext Tooth, 3/8"
1шт.
30
232-4116
NUT,3/8"-16, GC
1шт.
D99461
LOOM
CONDUIT bulk, 80 inch (2032 mm) long
1шт.
D91137
STRIP
bulk, 1/2 (12) x 1/8 (3) x 24 inch (600 mm) long
1шт.
345-44
ADHESIVE
spray can, 3M No. 74, 23 ounce
1шт.
Выбрано товаров: 32
