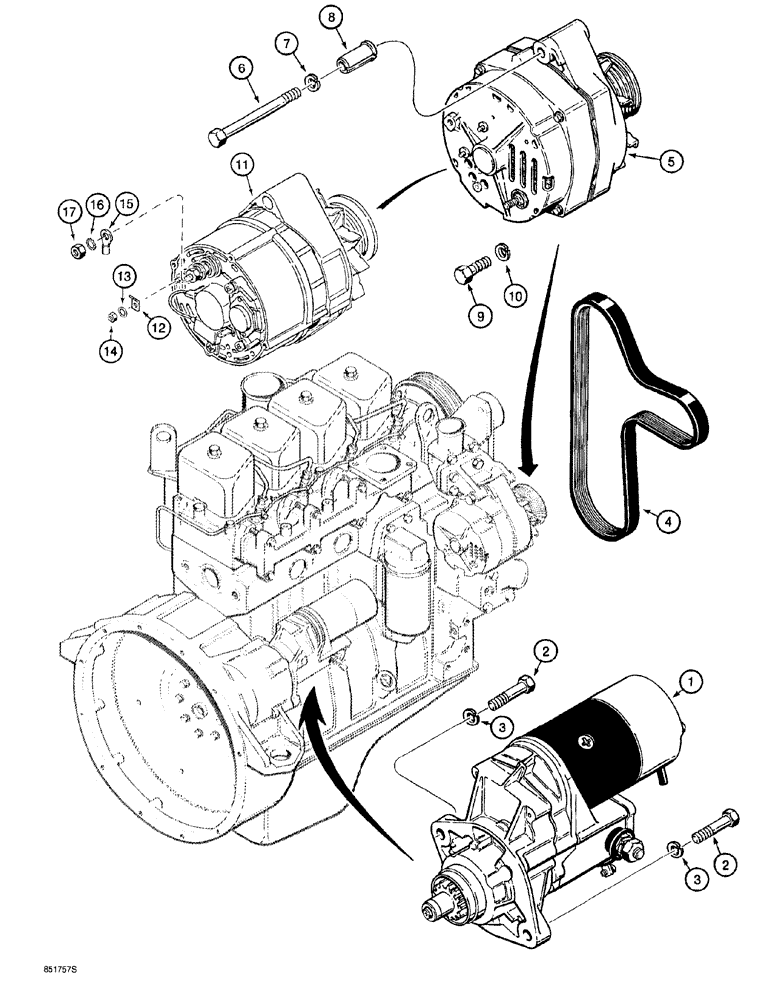

Запчасти Case 760 (04-010) - STARTER AND ALTERNATOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

A181056

STARTING MOTOR

ASSEMBLY, engine, new, parts list Fig. 4-006, no longer available, order 1987586C1

1шт.

1

1987586C1R

REMAN-STARTER,12V, 2.5kW

Reman for New P/N A181056

1шт.

1

1987586C1C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

1987586C1

STARTER MOTOR,12V, 2.5kW

ASSEMBLY, engine, new, parts list Fig. 4-008

1шт.

1

1987586C1R

REMAN-STARTER,12V, 2.5kW

760

1шт.

1

1987586C1C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Alternator and Fan, Replaces J903091

1шт.

5

REF

INSTRUCTION

ALTERNATOR, electrical, parts list Fig. 4-002 or 4-004

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

7

892-11010

LOCK WASHER,M10

If used

1шт.

8

J902469

SPACER

alternator mounting

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

492-11031

LOCK WASHER,5/16"

1шт.

11

A187873

ALTERNATOR,12V, 65A

ASSEMBLY, engine, 65 ampere, parts list Fig. 4-005A, service replacement for A186125

1шт.

11

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

11

AC187873

CORE-ALTERNATOR

Return number

1шт.

11

A187873GV

ALTERNATOR

1шт.

12

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

regulator stud to harness, if used Male

1шт.

13

892-11005

LOCK WASHER,M5

If used

1шт.

14

825-1405

NUT,M5, Cl 8

If used

1шт.

15

1964722C1

TERMINAL CONNECTOR

eyelet, alternator battery stud, if used

1шт.

16

493-21033

LOCK WASHER,Int Tooth, 5/16"

internal tooth, 5/16 inch, if used

1шт.

17

825-1408

NUT,M8, Cl 8

If used

1шт.
