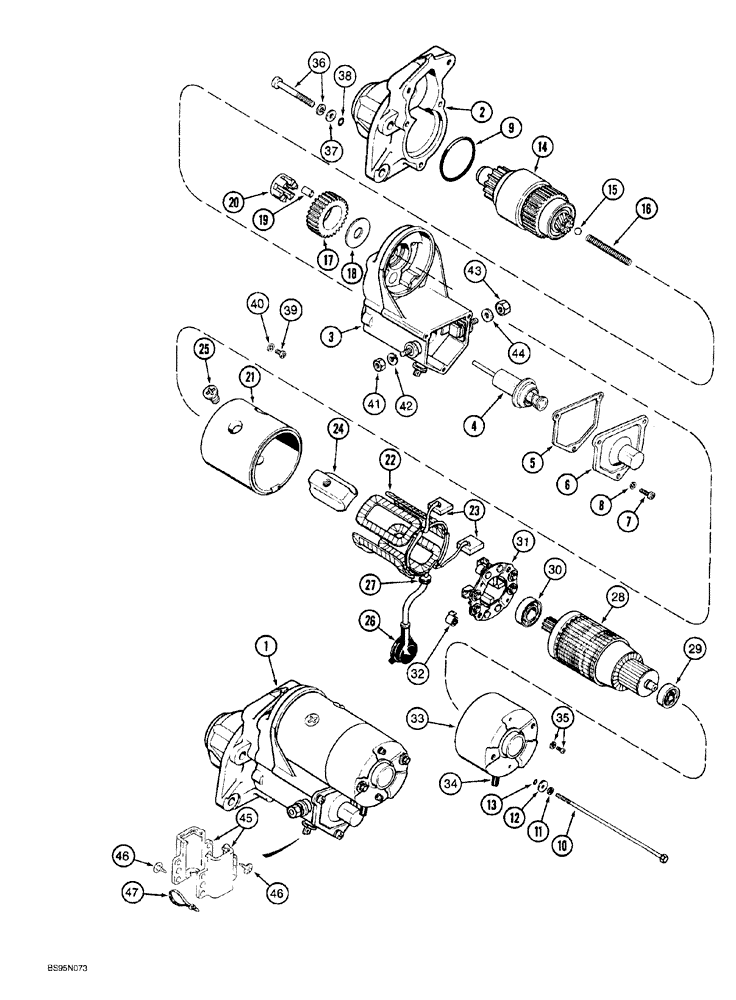

Запчасти Case 760 (04-006) - STARTER - A181056 (55) - ELECTRICAL SYSTEMS

1

A181056

STARTING MOTOR

ASSEMBLY, engine, new (Nippendenso No. 128000-3120), no longer available, order 1987586C1 starter shown on Fig. 4-008, Includes: Ref. 2 - 44

1шт.

1

1987586C1R

REMAN-STARTER,12V, 2.5kW

760

1шт.

1

1987586C1C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

2

A46948

HOUSING

drive end

1шт.

3

142324A1

IGNITION SWITCH

ASSEMBLY, magnetic, Includes: Ref. 4 - 8, replaces A46949, also includes Refs. 44 - 46 shown below

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID starter

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER cover screw

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

switch to housing, replaces A47229

1шт.

A47230

BOLT

ASSEMBLY, through, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT through

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

12

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

13

A47127

O-RING

bolt seal

1шт.

14

A52396

DRIVE

CLUTCH

1шт.

15

211-209

BALL

chrome alloy steel, 11/32 inch, grade 24

1шт.

16

A47232

SPRING

compression, 2-13/16 inch free length

1шт.

17

A47233

GEAR

PINION idler

1шт.

18

A47234

WASHER

thrust

1шт.

19

A47235

ROLLER BEARING

pinion bearing

6шт.

20

A47236

RETAINER

roller bearing

1шт.

A47240

HOUSING

ASSEMBLY, with coil and brushes, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSH starter

4шт.

24

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT magnetic switch terminal

1шт.

27

A47241

PLATE

lock

1шт.

28

A47242

ARMATURE

ASSEMBLY, starter, Includes: Ref. 29 and 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Commutator end, Replaces S85601

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

drive end

1шт.

31

A47239

HOLDER

ASSEMBLY, brush (Includes 2 brushes), Includes: Ref. 32

1шт.

32

A47249

SPRING

brush tension

4шт.

33

A47237

FRAME

commutator end

1шт.

34

A47238

COVER

end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

ASSEMBLY, with washer, brush retaining

2шт.

A47243

BOLT

ASSEMBLY, commutator end cover to drive end housing, Includes: Ref. 36 - 38

3шт.

36

A47129

CAPTIVE WASHER SCREW

ASSEMBLY, with washer, housing retaining

1шт.

37

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

38

A47130

O-RING

bolt seal

1шт.

39

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

1шт.

40

493-21017

LOCK WASHER,Int Tooth, #8

1шт.

41

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

42

492-11038

LOCK WASHER,3/8"

1шт.

43

825-1410

NUT,M10, Cl 8

1шт.

44

A10454

WAVE WASHER

spring, terminal

1шт.

143122A1

COVER

KIT starter relay cover, no longer available, order Ref. 3, 142324A1, Includes: Ref. 45 - 47

1шт.

45

122431A1

COVER

starter relay

2шт.

46

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

Phillips

2шт.

47

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

2шт.
