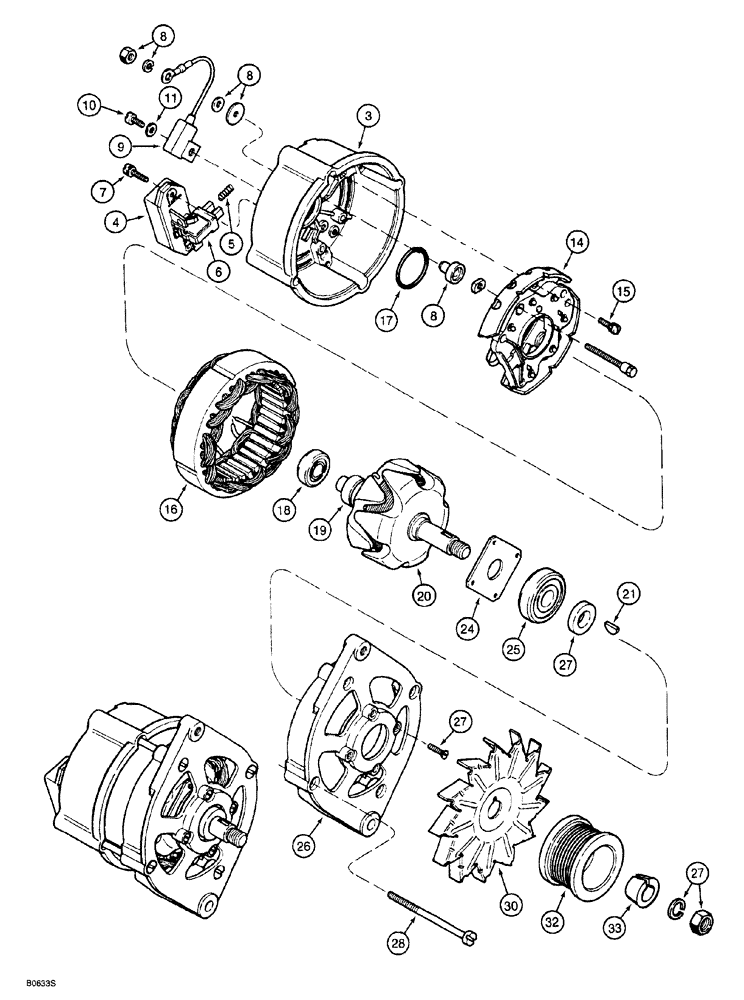

Запчасти Case 760 (04-004) - ALTERNATOR - A186125 (55) - ELECTRICAL SYSTEMS

3

A186187

HOUSING

ALTERNATOR ASSEMBLY, engine, 63 ampere, Delco Remy, order Ref. 1, A46932 alternator and Ref. 44, A43384 on this fig. and Refs. 27, J908560 pulley and 28, J908563 retainer on Fig. 4-005A, Includes: Ref. 3 - 28

1шт.

3

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

3

87297245

CORE-ALTERNATOR

Return number

1шт.

3

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

3

103799A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 63 AMP Alternator

1шт.

3

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

3

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

3

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

3

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

3

103804A1R

REMAN-ALTERNATOR

Remanufactured, 12 volt 72 ampere

1шт.

3

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

3

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12v 65a Alternator

1шт.

3

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a Alternator

1шт.

4

A186189

REGULATOR

voltage, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING compression

2шт.

6

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY, alternator

1шт.

7

A186194

SCREW,M4 x 18mm

hex flange, special

2шт.

8

3079135R1

TERMINAL CONNECTOR

terminal

1шт.

9

A186195

CAPACITOR

alternator

1шт.

10

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

special, capacitor retaining

1шт.

11

A186196

WASHER

special

1шт.

14

A186197

RECTIFIER

BRIDGE, includes hardware

1шт.

15

A186188

SCREW

with washer

3шт.

16

A186192

STATOR

alternator

1шт.

17

3079386R1

O-RING

bearing

1шт.

18

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

ball

1шт.

19

A186185

RING

collector

1шт.

20

A186184

ROTOR

alternator

1шт.

21

NSS

NOT SOLD SEPARAT

KEY rotor, order 3078897R1 kit (see Ref. 19-23 on Fig. 4-8)

1шт.

24

3078379R1

COVER

PLATE bearing retaining

1шт.

25

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

ball, drive end

1шт.

26

A187994

HOUSING

HOUSING drive end, replaces A186182

1шт.

27

3078897R1

SET OF PARTS

rotor retaining

1шт.

28

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

slotted, special

4шт.

30

221425R1

FAN

alternator

1шт.

32

J908560

PULLEY

drive

1шт.

33

J908563

RETAINER

pulley

1шт.
