(02-014) - ENGINE MOUNTING

Запчасти Case 760 (02-014) - ENGINE MOUNTING (10) - ENGINE

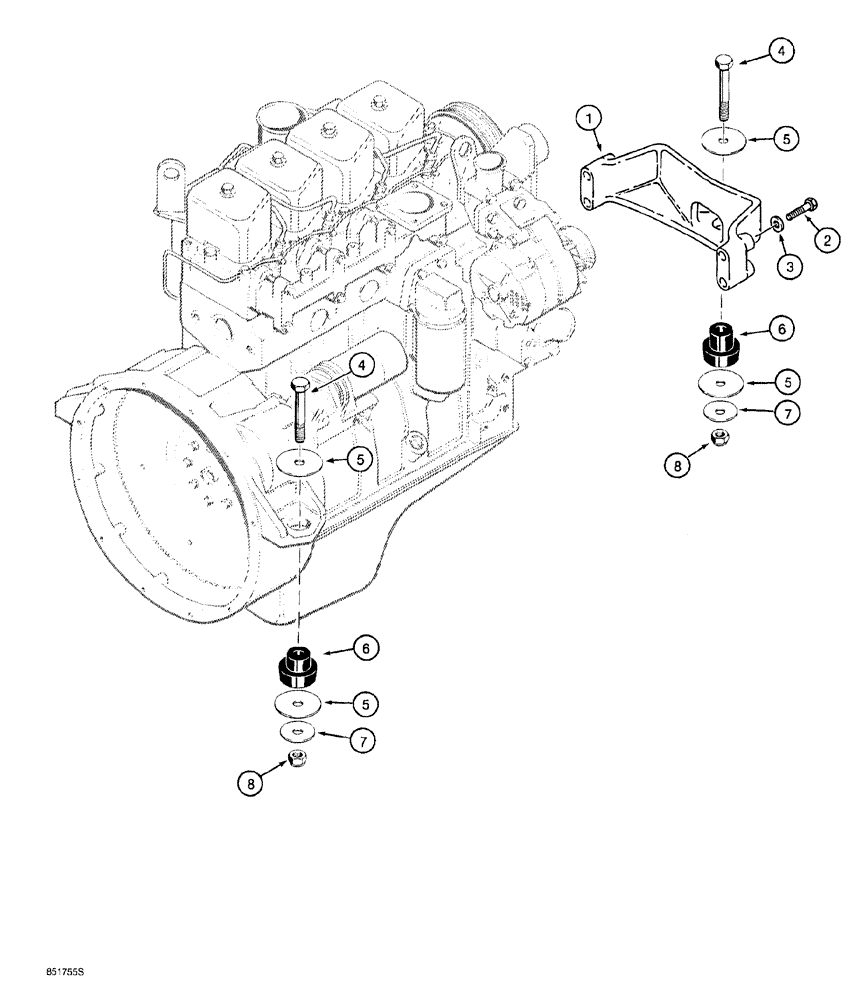

Схема запчастей Case 760 - (02-014) - ENGINE MOUNTING (10) - ENGINE
4
5
5
1
7
6
5
3
5
4
6
8
2
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A170985

BRACKET

engine mounting, front

1шт.

2

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

4

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

5

CASD35009

WASHER,16.67mm ID x 63.5mm OD

flat, special

6шт.

6

H426916

MOUNTING PARTS

insulator, vibration, rubber

3шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

3шт.

8

232-41110

NUT,5/8"-11, GC

3шт.
