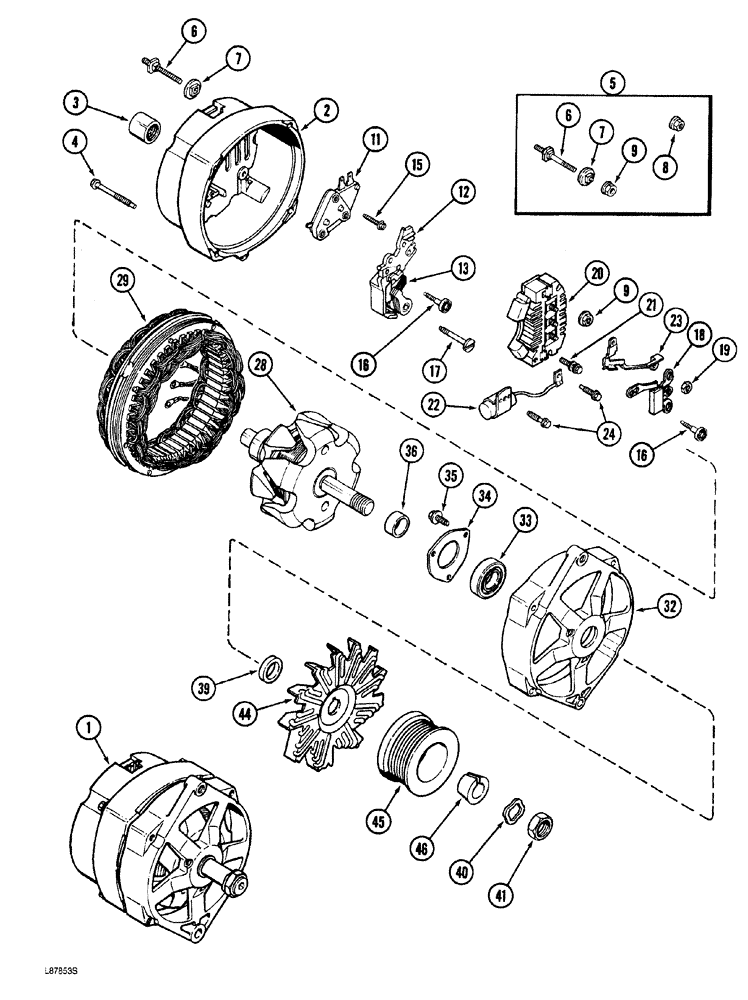

Запчасти Case 760 (04-002) - ALTERNATOR - A186134 (55) - ELECTRICAL SYSTEMS

A186134

INSTRUCTION

ALTERNATOR ASSEMBLY, engine, 63 ampere, Delco Remy, order Ref. 1, A46932 alternator and Ref. 44, A43384 on this figure and Ref. 27, J908560 pulley and 28, J908563 retainer on Figure 4-005A, Includes: Ref. 2 - 41

1шт.

1

A46932

ALTERNATOR

ASSEMBLY, engine, service only, Includes: Ref. 2 - 41

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297245

CORE-ALTERNATOR

Return number

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 AMP Alternator

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere,

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

1

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12v 65a Alternator

1шт.

1

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a Alternator

1шт.

2

A47595

FRAME

slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

frame

1шт.

4

463-11028

SCREW,Hex Hd, #10-24 x 1 3/4"

4шт.

5

A47597

TERMINAL CONNECTOR

KIT, battery, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR terminal

1шт.

8

NSS

NOT SOLD SEPARAT

NUT terminal

1шт.

9

NSS

NOT SOLD SEPARAT

NUT terminal

1шт.

11

A45213

REGULATOR

Voltage

1шт.

12

A47042

HOLDER

ASSEMBLY, brush, Includes: Ref. 13

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH alternator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

brush holder, insulated

2шт.

17

A47581

SCREW,#8 - 32 x 1.43"

brush holder, retaining

1шт.

18

A48339

DIODE

trio

1шт.

19

225-14108

NUT,#8-32

hex, No. 8 NC

3шт.

20

A46942

ELEC CONNECTOR

BRIDGE rectifier

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

rectifier bridge retaining

1шт.

22

A47734

CAPACITOR

alternator

1шт.

23

A46931

TERMINAL CONNECTOR

relay

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

capacitor bracket

2шт.

28

A46935

ROTOR

alternator

1шт.

29

A46936

STATOR

alternator

1шт.

32

A46933

FRAME

drive end

1шт.

33

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ball, drive end, replaces A49389

1шт.

34

R15101

PLATE

bearing retainer

1шт.

35

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

bearing plate retaining

3шт.

36

A48261

COLLAR

rotor shaft, inner

1шт.

39

A49733

COLLAR

rotor shaft, outer

1шт.

40

R16171

SPRING WASHER

lock, pulley nut

1шт.

41

A25546

NUT

pulley and fan retaining

1шт.

44

A43384

FAN

alternator

1шт.

45

J903586

GROOVED PULLEY

drive, no longer available, order Ref. 27, J908560, and Ref. 28, J908563 retainer, shown on Fig. 4-005A

1шт.

46

J903333

RETAINER

pulley, no longer available, order Ref. 27, J908560 pulley and Ref. 28, J908563 shown on Fig. 4-005A

1шт.
