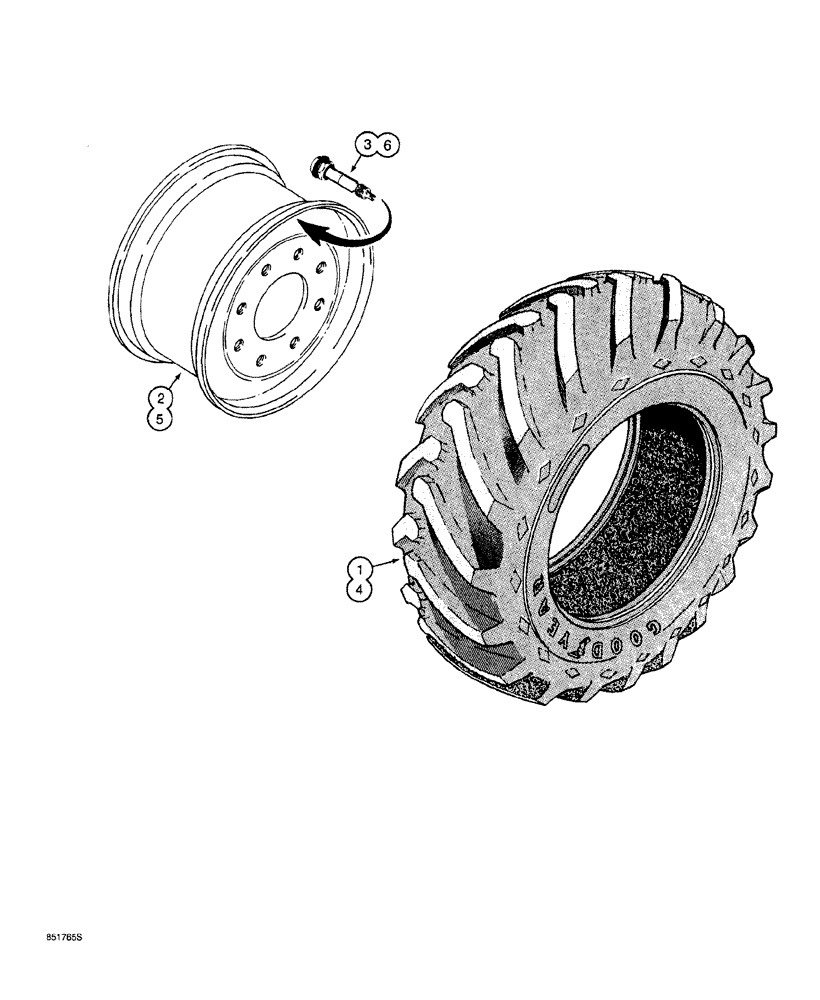

Запчасти Case 760 (06-068) - WHEELS AND TIRES (44) - WHEELS

H939076

TIRE AND WHEEL ASSEMBLY, 38 x 14 - 20 NHS (Super Terra Grip), Includes: Ref. 1 - 3

4шт.

1

REF

INSTRUCTION

TIRE, 38 x 14 - 20 NHS (Super Terra Grip) 4 ply rating, purchase locally, if used

1шт.

2

H438449

RIM

WHEEL

1шт.

3

A38261

VALVE

stem, tire inflation

1шт.

H939096

TIRE AND WHEEL ASSEMBLY, 38 x 14 - 20 NHS (Super Terra Grip) 8 ply rating, machinery Ref., order from machinery price list, if used, Includes: Ref. 4 - 6

4шт.

4

REF

INSTRUCTION

TIRE, 38 x 14 - 20 NHS (Super Terra Grip) 8 ply rating, purchase locally, if used

1шт.

5

H438449

RIM

WHEEL

1шт.

6

T57461

VALVE STEM

tire inflation

1шт.

H939210

TIRE AND WHEEL ASSEMBLY, 38 x 18 - 20 NHS (Super Terra Grip) 8 ply rating, machinery Ref., order from machinery price list, if used, Includes: Ref. 7 - 9

4шт.

7

REF

INSTRUCTION

TIRE, 38 x 18 - 20 NHS (Super Terra Grip) 10 ply rating, purchase locally, if used, not shown

1шт.

8

H438450

RIM

WHEEL used with 38 x 18 tire, not shown

1шт.

9

T57461

VALVE STEM

tire inflation, not shown

1шт.
