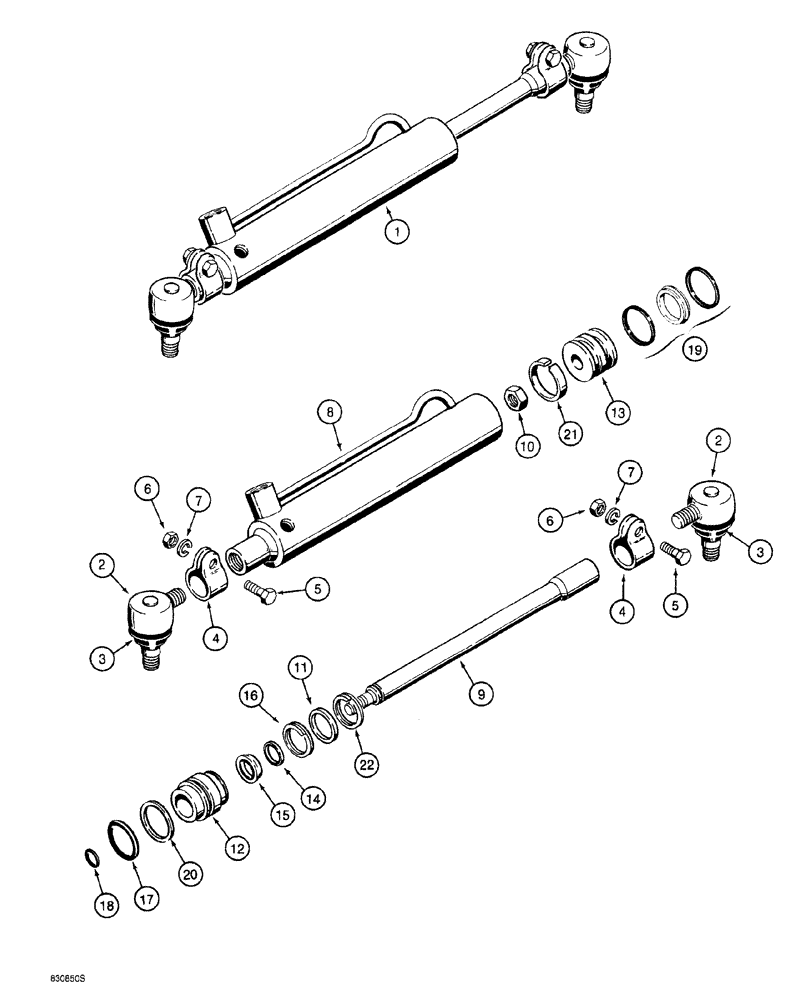

Запчасти Case 760 (05-048) - STEERING CYLINDER (41) - STEERING

1

H672129

CYLINDER

ASSEMBLY, 1-1/2 (38) ID x 8-1/2 inch (215 mm) stroke, Includes: Ref. 2 - 22

4шт.

2

A40962

BALL JOINT

male thread, Includes: Ref. 3

2шт.

3

A41424

SEAL

BOOT dust cover

1шт.

A27080

CLAMP

ASSEMBLY, end, Includes: Ref. 4 - 7

2шт.

4

NSS

NOT SOLD SEPARAT

CLAMP end

1шт.

5

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

hex, 3/8 NF x 1-1/2 inch

1шт.

6

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

N13623

TUBE,12.60, 1.15" L

cylinder

1шт.

9

N13624

ROD

cylinder

1шт.

10

131-1145

JAM NUT,5/8" - 18

hex, jam, self-locking, 9/16 inch NF

1шт.

11

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

SPACER gland

1шт.

12

D83189

GLAND

cylinder, includes bushing

1шт.

13

D83190

PISTON

cylinder

1шт.

D148100

GASKET KIT

seal, replaces D83184 seal kit, Includes: Ref. 14 - 21

1шт.

14

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

piston rod

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL rod

1шт.

16

102-23150

SNAP RING,#150, 1.591", Int, Spiral

internal spiral retaining, No. 150, replaces A44652

1шт.

17

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

18

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

20

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

SEALRING backup, gland

1шт.

21

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

22

A44654

SNAP RING,#125, 1.188", Ext Spiral

locking, outer

1шт.
