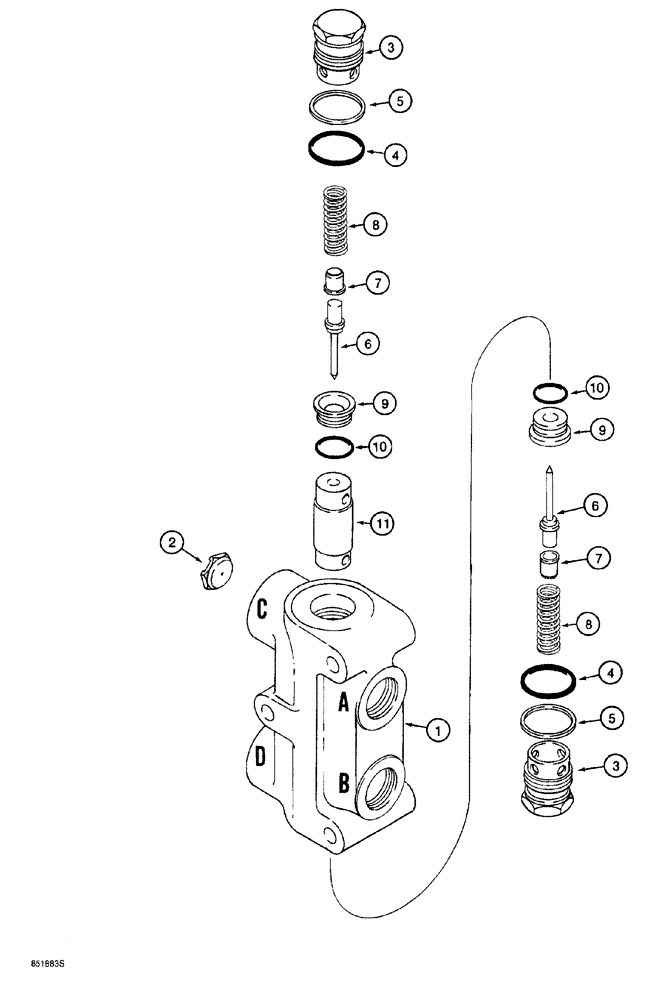

Запчасти Case 760 (05-046) - H672547 STEERING LOCKOUT VALVE, P.I.N. JAF0022965 AND AFTER (41) - STEERING

H672547

VALVE

ASSEMBLY, lockout, Includes: Ref. 1 - 11

1шт.

1

H267948

VALVE BODY

lockout

1шт.

2

H270603

ORIFICE

PLATE, 0.055 inch

1шт.

A43525

PLUG

ASSEMBLY, lockout valve, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG lockout valve

1шт.

4

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

5

S302062

BACK-UP RING

plug

1шт.

6

F88777

PLUNGER

POPPET, lockout valve

2шт.

7

N13488

EYE

SEAT spring

2шт.

8

85069C1

VALVE SPRING

poppet

2шт.

N13369

SEAT ASSY.

plunger, Includes: Ref. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

N13489

PLUNGER

PISTON, lockout valve

1шт.
