Запчасти Case 760 (05-044) - STEERING LOCKOUT VALVE, PRIOR TO P.I.N. JAF0022965 (41) - STEERING

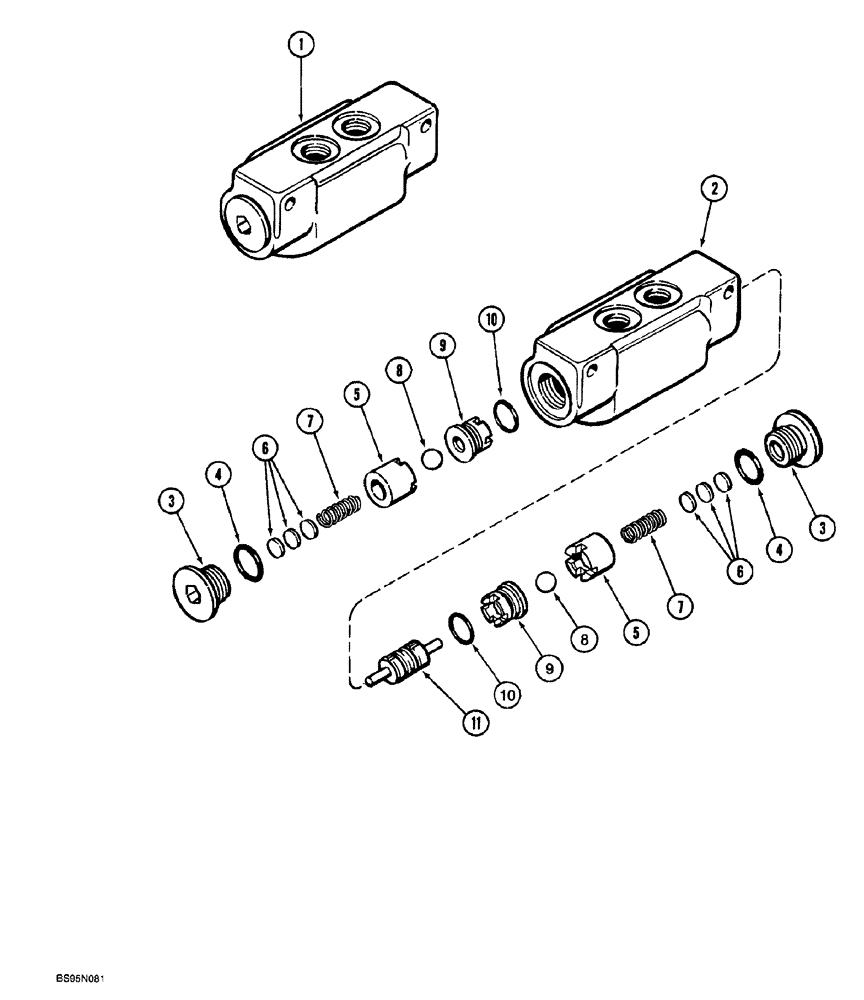

Схема запчастей Case 760 - (05-044) - STEERING LOCKOUT VALVE, PRIOR TO P.I.N. JAF0022965 (41) - STEERING
3
1
11
4
7
9
7
10
5
10
8
4
8
6
9
6
3
5
2

Артикул

Название

Примечание

Количество

1

A161709

VALVE

ASSEMBLY, lockout, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

3

A47714

PLUG

valve end

2шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

Part of valve repair kit, P/N A47715

1шт.

5

A47711

SLEEVE

valve

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM valve

1шт.

Part of valve repair kit, P/N A47715

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING sleeve

2шт.

Part of valve repair kit, P/N A47715

1шт.

8

211-1014

BALL,7/16" Dia

chrome alloy steel, grade 24

2шт.

Part of valve repair kit, P/N A47715

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT valve

2шт.

Part of valve repair kit, P/N A47715

1шт.

10

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

Part of valve repair kit, P/N A47715

1шт.

11

A47709

VALVE

shuttle

1шт.

A47715

SEAL

KIT valve repair, Includes: Ref. 4 and 6 - 10

1шт.

Выбрано товаров: 18
