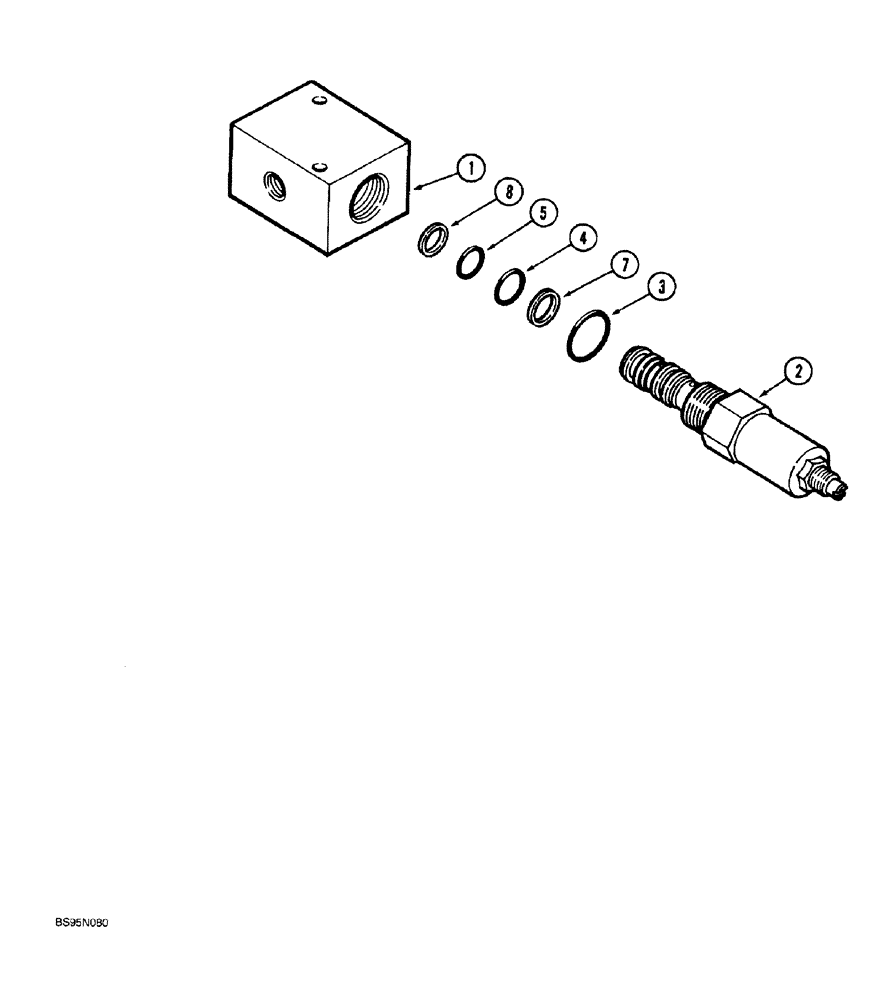

Запчасти Case 760 (05-042) - STEERING PRESSURE REGULATOR VALVE (41) - STEERING

A185477

VALVE

ASSEMBLY, pressure regulating, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve (Order A185477 assembly)

1шт.

2

A52414

CARTRIDGE

ASSEMBLY, valve, Includes: Ref. 3 - 8

1шт.

A48950

KIT

seal, no longer available, order individual components, Includes: Ref. 3 - 8

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

7

L30012

RING

backup

1шт.

8

T40181

RING

backup

1шт.
