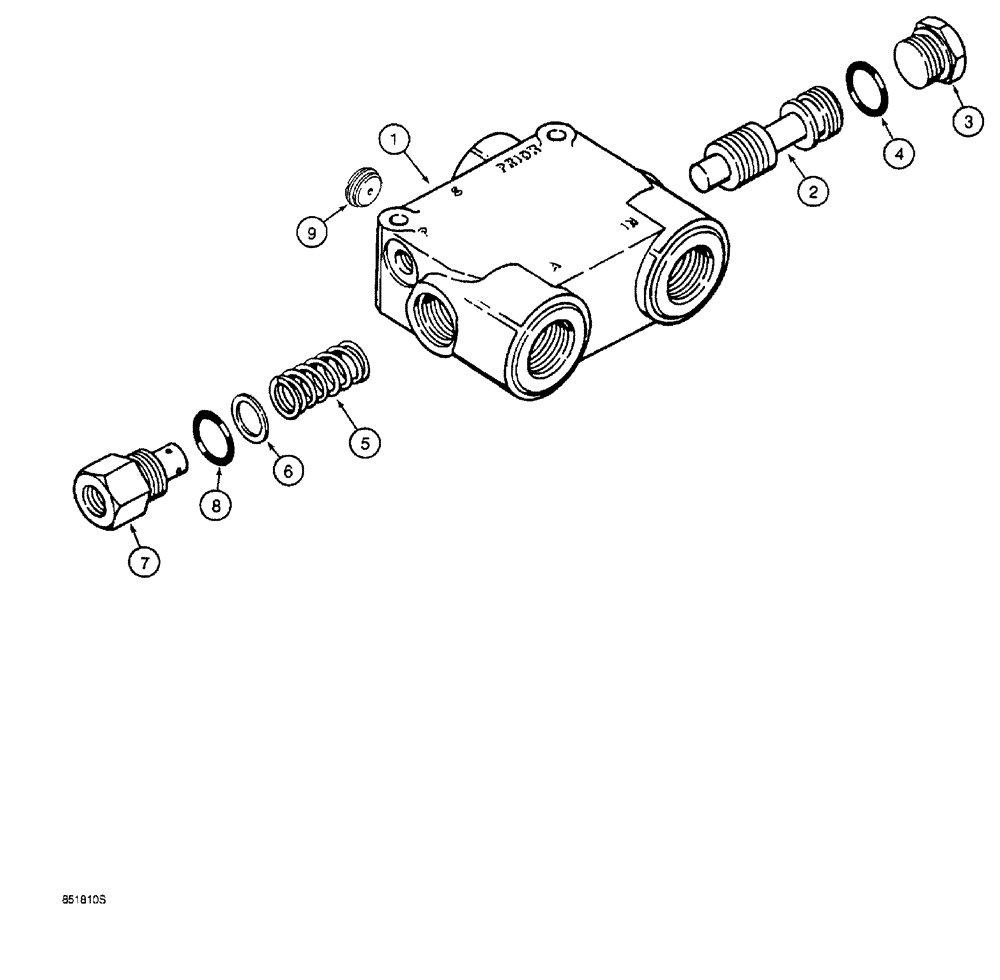

Запчасти Case 760 (05-038) - PRIORITY FLOW DIVIDER VALVE - H672118, PRIOR TO P.I.N. JAF0022965 (41) - STEERING

H672118

VALVE

ASSEMBLY, priority flow divider, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, rear priority flow divider valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

A47429

PLUG

ASSEMBLY, spool retaining, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG spool retaining

1шт.

4

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

5

A47477

SPRING

spool

1шт.

6

A46927

WASHER

special, 0.010 inch (0.254 mm) thick

1шт.

6

A46928

WASHER

special, 0.020 inch (0.51 mm) thick

1шт.

6

H746198

WASHER

special, 0.030 inch (0.76 mm) thick

1шт.

6

H746131

WASHER

special, 0.065 inch (1.651 mm) thick

1шт.

N13451

VALVE

ASSEMBLY, relief, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

9

H434622

ORIFICE

PLATE, 0.035 inch

1шт.
