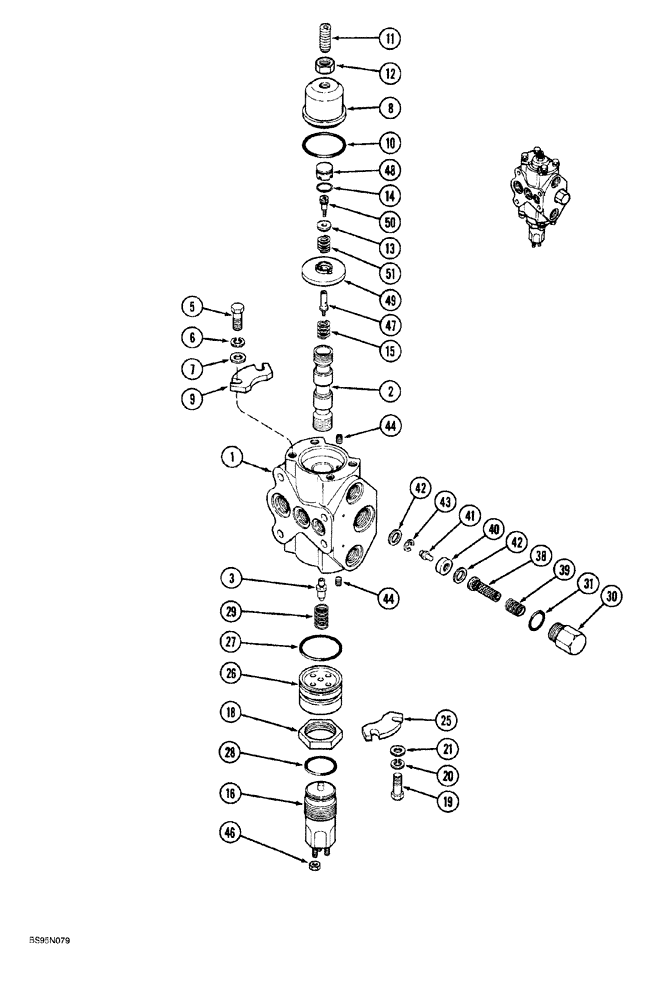

Запчасти Case 760 (05-036) - REAR STEERING CONTROL VALVE (41) - STEERING

A187093

VALVE

ASSEMBLY, steering (order A185417 valve, shown on Fig. 5-034), Includes: Ref. 1 - 51

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY, valve (Order A185417), Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve (Order A185417 assembly)

1шт.

3

NSS

NOT SOLD SEPARAT

NOZZLE valve spool (Order A185417 assembly)

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

8

A187098

GLAND

valve, spool orifice

1шт.

9

A47510

RETAINER

gland

2шт.

10

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

11

178-1385

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

set, hex socket headless, 1/2 NF x 1-1/2 inch, flat point

1шт.

12

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

13

A187097

GUIDE

spring, orifice

1шт.

14

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

15

A187096

SPRING

valve

1шт.

16

A47512

MOTOR, HYDRAULIC

force control

1шт.

18

A47515

LOCK NUT

hex, force motor

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

25

A47510

RETAINER

gland

2шт.

26

A47507

GLAND

nozzle, valve spool

1шт.

27

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

28

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

Nozzle gland

1шт.

29

A47517

SPRING

nozzle (Not used this application)

1шт.

30

A47508

CAP

PLUG filter

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

A187037

FILTER

valve, green color code

1шт.

39

A47514

SPRING

filter

1шт.

40

A47506

PLATE

filter

1шт.

41

A47505

PIN

filter plate

1шт.

42

A47550

SEAL,11.48mm ID x 15.85mm OD x 1.35mm Thk

filter plate

2шт.

43

100-3325

SNAP RING,#25, .207" Dia, E-Type

1шт.

44

A47509

ORIFICE

orifice, filter passage

2шт.

46

225-14108

NUT,#8-32

hex, No. 8 NC

3шт.

47

A187094

STEM

valve

1шт.

48

A187095

PISTON

valve

1шт.

49

A187099

RETAINER

valve

1шт.

50

A187100

SCREW

valve

1шт.

51

A187101

SPRING

valve

1шт.
