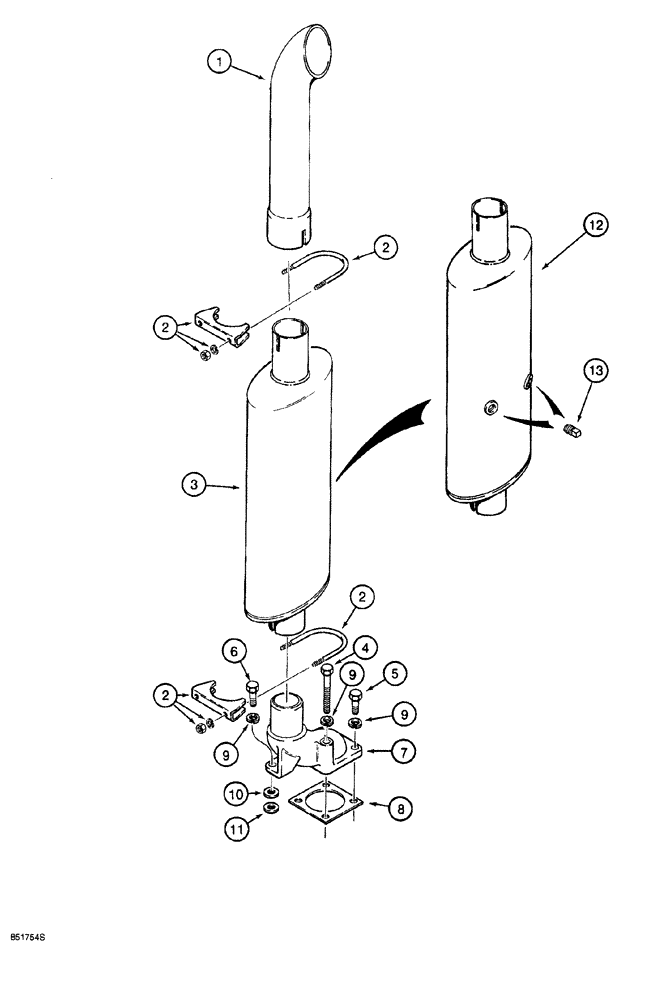

Запчасти Case 760 (02-012) - MUFFLER AND EXHAUST SYSTEM (10) - ENGINE

1

L74728

PIPE

EXTENSION muffler exhaust

1шт.

2

A13240

CLAMP,2-5/8" ID

two piece, includes hardware

2шт.

3

A173180

MUFFLER

engine exhaust

1шт.

4

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

2шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

7

H433950

ADAPTER

exhaust, Serial Range: manifold-muffler

1шт.

8

A170151

MANIFOLD GASKET

adapter

1шт.

9

892-11010

LOCK WASHER,M10

5шт.

10

H433992

WASHER

flat, special, adapter

1шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

12

A173648

ARRESTER

MUFFLER spark, inlet dia. 2-1/2 inch (64 mm), Includes: Ref. 13

1шт.

13

217-77

PLUG

square, 3/8 inch PT, brass, spark arrester muffler

2шт.
