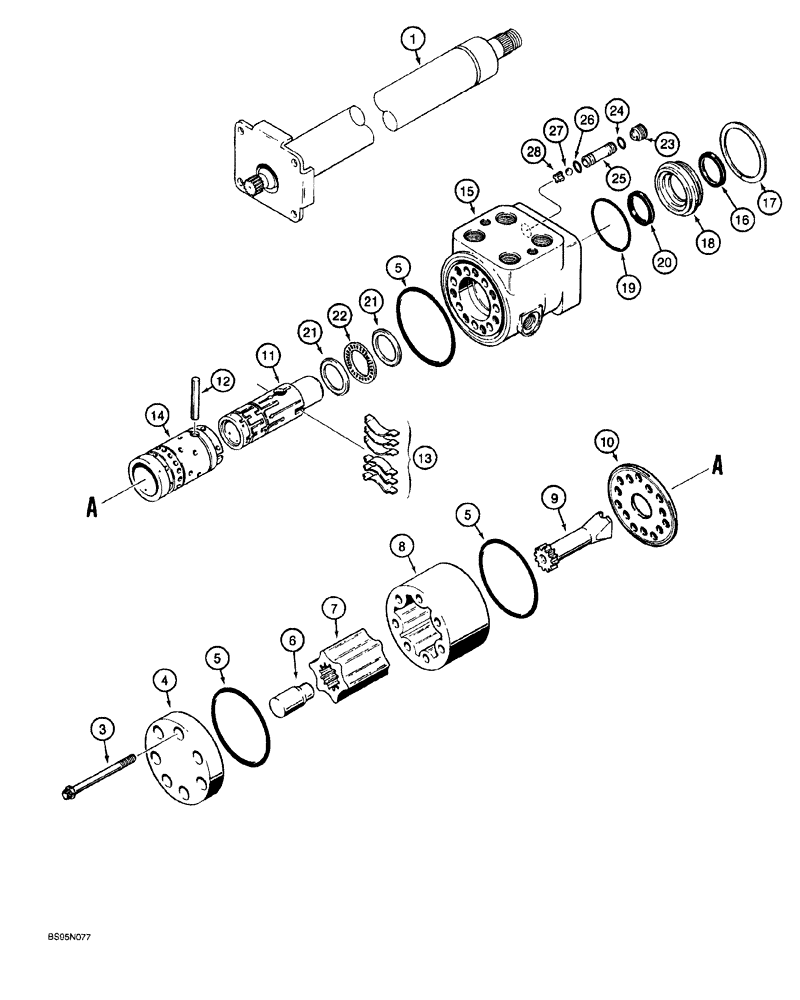

Запчасти Case 760 (05-031A) - STEERING CONTROL VALVE ASSEMBLY - 141535A1 (41) - STEERING

1

H672220

STEERING COLUMN

ASSEMBLY, component parts not serviced separately

1шт.

141535A1

VALVE

ASSEMBLY, steering control, Includes: Ref. 3 - 28

1шт.

3

135866A1

SCREW,Flg, Torx, 5/16" x 1 3/4", Gr 8

BOLT, 12 point flange, special, 5/16 NF x 1-3/4 inch, grade 8

7шт.

4

135867A1

CAP

end, without O-ring groove

1шт.

5

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

3шт.

Part of Seal Kit, P/N 135882A1

1шт.

6

K964246

SPACER

drive shaft

1шт.

1343638C1

ROTOR

GEROTOR set, steering control valve, replaces 135868A1, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ROTOR, steering control valve

1шт.

8

NSS

NOT SOLD SEPARAT

STATOR, steering control valve

1шт.

9

L30878

DRIVE SHAFT

gerotor

1шт.

10

135869A1

PLATE

spacer, with O-ring groove

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

12

135874A1

PIN

roll

1шт.

N14250

KIT

centering spring, Includes: Ref. 13 and 13A

1шт.

13

L30889

SPRING

spool, centering, no longer available, order N14250 kit

6шт.

13a

NSS

NOT SOLD SEPARAT

SPACER spring, if used, not shown

2шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE spool

1шт.

15

NSS

NOT SOLD SEPARAT

BODY steering control valve

1шт.

16

697494R91

OIL SEAL

1 inch ID, gland, outer

1шт.

Part of Seal Kit, P/N 135882A1

1шт.

17

S110169

WASHER

RING retaining, gland

1шт.

18

S110170

BUSHING

GLAND seal, spool

1шт.

19

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 135882A1

1шт.

20

201893H1

SEALING RING

SEAL, square section, gland, outer

1шт.

Part of Seal Kit, P/N 135882A1

1шт.

21

D82804

RACE

thrust, bearing

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Needle

1шт.

23

D82805

SET SCREW

SCREW set, body

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Seat, outer

1шт.

Part of Seal Kit, P/N 135882A1

1шт.

25

D82806

VALVE SEAT

ball

1шт.

26

L30893

O-RING,1/16" Thk x 5/16" ID

O-RING, seat, inner

1шт.

Part of Seal Kit, P/N 135882A1

1шт.

27

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

1шт.

28

L35368

RETAINER

check ball

1шт.

135882A1

SEAL KIT

KIT, Includes: Ref. 5, 16, 19, 20, 24 and 26

1шт.
