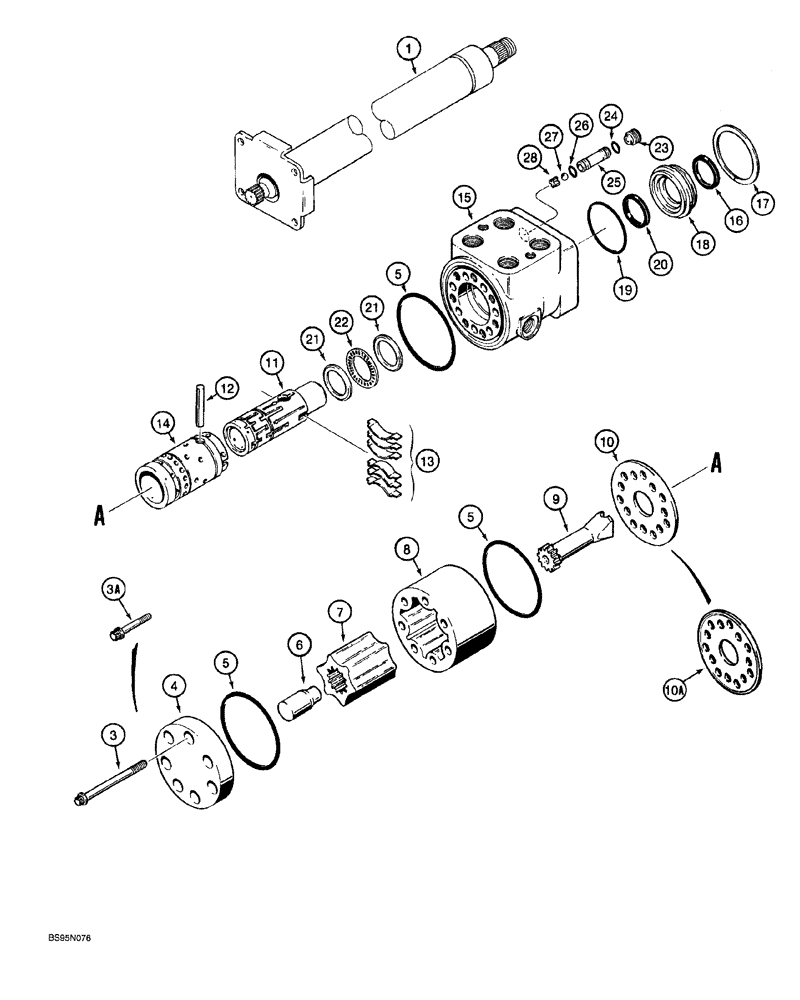

Запчасти Case 760 (05-030) - STEERING CONTROL VALVE ASSEMBLY - H672219 (41) - STEERING

1

H672220

STEERING COLUMN

ASSEMBLY, control, attachment on models with electronic steering, attachment and rear steering control on models w/out electronic steering, P/L Figs 8-032 thru 8-038, see Fig 8-030 for mounting

1шт.

H672219

VALVE

ASSEMBLY, steering control, no longer available, order 141535A1 shown on Fig. 5-031A, Includes: Ref. 3 - 28

1шт.

3

1343641C1

SCREW,Flg, 5/16" - 24 x 1 5/8", Gr 8

Replaces H189555, used with Refs. 4 and 10, if used

7шт.

3a

135866A1

SCREW,Flg, Torx, 5/16" x 1 3/4", Gr 8

12 point flange, special, 5/16 NF x 1-3/4 inch, grade 8, used with Refs. 4A and 10A, if used

7шт.

Part of Repair Kit, P/N 136493A1

1шт.

4

D82809

COVER

CAP end, with O-ring groove, uses Ref. 5, N6392, no longer available, order 136493A1 repair kit

1шт.

4a

135867A1

CAP

end, without O-ring groove, 3/8 inch thick, uses Ref. 5, 238-5040, shown on Fig. 5-030

1шт.

Part of Repair Kit, P/N 136493A1

1шт.

5

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

body

3шт.

Part of Seal Kit, P/N D82802

1шт.

6

K964246

SPACER

drive shaft

1шт.

N13342

GEAR-SET

GEROTOR, steering control valve, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ROTOR steering valve

1шт.

8

NSS

NOT SOLD SEPARAT

STATOR steering valve

1шт.

9

L30878

DRIVE SHAFT

gerotor

1шт.

10

S113037

PLATE

spacer, without O-ring groove, uses Ref. 5, N6392, O-ring in the gerotor O-ring groove, upon depletion of S113037 stock, order 136493A1 repair kit

1шт.

10a

135869A1

PLATE

spacer, with O-ring groove (install with groove facing gerotor), uses Ref. 5, 238-5040, shown on Fig. 5-031A

1шт.

Part of Repair Kit, P/N 136493A1

1шт.

S115563

BODY

CONTROL ASSEMBLY, valve, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

12

L30888

PIN

roll

1шт.

13

N14250

KIT

centering spring, spool (set of 6)

6шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE spool

1шт.

15

NSS

NOT SOLD SEPARAT

BODY control assembly

1шт.

16

697494R91

OIL SEAL

1 inch ID, gland, outer

1шт.

Part of Seal Kit, P/N D82802

1шт.

17

S110169

WASHER

retaining, gland

1шт.

18

S110170

BUSHING

GLAND seal, spool

1шт.

19

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N D82802

1шт.

20

201893H1

SEALING RING

square section, gland, inner

1шт.

Part of Seal Kit, P/N D82802

1шт.

21

D82804

RACE

thrust, bearing

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Needle

1шт.

23

D82805

SET SCREW

SCREW set, housing

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Outer

1шт.

Part of Seal Kit, P/N D82802

1шт.

25

D82806

VALVE SEAT

ball

1шт.

26

L30893

O-RING,1/16" Thk x 5/16" ID

seat, inner

1шт.

Part of Seal Kit, P/N D82802

1шт.

27

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

1шт.

28

L35368

RETAINER

check ball

1шт.

136493A1

COVER

KIT repair, end cap and spacer plate, use with 238-6040O-rings, Ref. 20, shown on Fig. 5-005D, Includes: Ref. 3A, 4A and 10A

1шт.

D82802

SEAL PACKAGE

KIT, no longer available, order individual component parts, Includes: Ref. 5, 16, 19, 20, 24 and 26

1шт.
