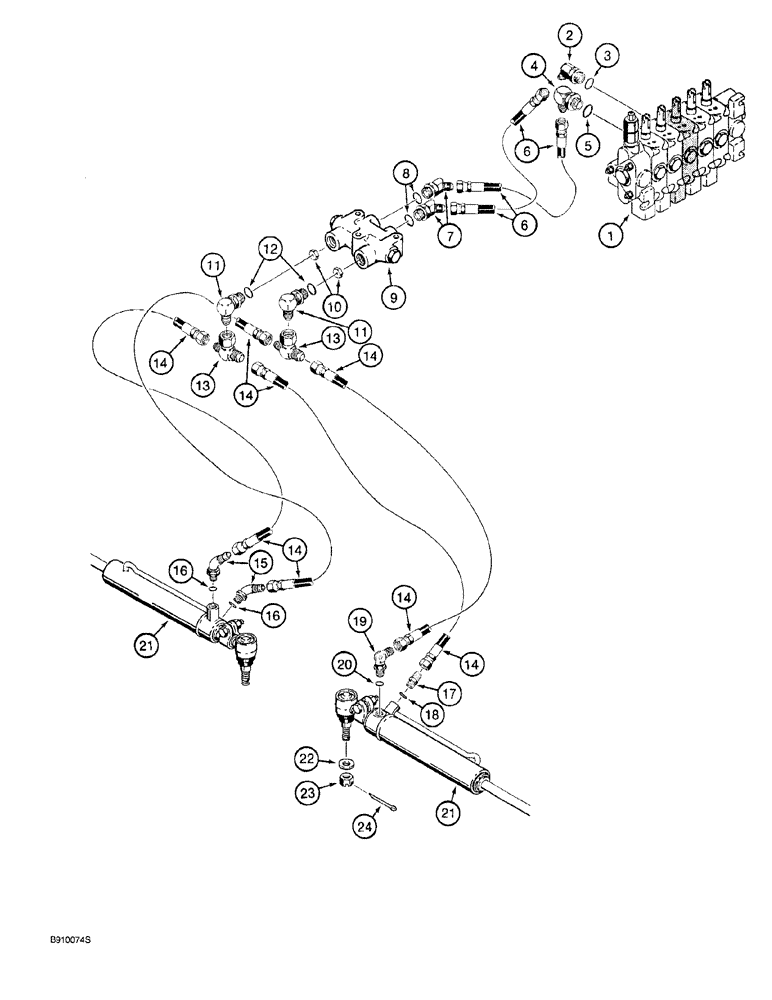

Запчасти Case 760 (05-028) - REAR STEERING HYDRAULIC CIRCUIT, MODELS WITHOUT ELECTRONIC STEERING, P.I.N. JAF0022965 AND AFTER (41) - STEERING

1

H672412

VALVE

ASSEMBLY, control, attachment on models with electronic steering, attachment and rear steering control on models w/out electronic steering, P/L Figs 8-032 thru 8-038, see Fig 8-030 for mounting

1шт.

2

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Control Valve to Lockout Valve

2шт.

7

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

H672547

VALVE

ASSEMBLY, lockout, rear steering, parts list Fig.5-046, see Fig. 5-008 for mounting

1шт.

10

H270603

ORIFICE

PLATE, 0.055 inch, 1 (one) orifice is included with H672547 rear steering lockout valve, Ref. 9

2шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16-18 inch swivel x flare x flare

2шт.

14

S77121

HOSE

20 inch (508 mm) long, tee to rear steering cylinders, replaces H171041, 18 inch

4шт.

15

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 16

2шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 18

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 20

1шт.

21

H672129

CYLINDER

ASSEMBLY, 1-1/2 (38) ID x 8-1/2 inch (215 mm) stroke, rear steering, parts list Fig. 5-048

2шт.

22

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

1шт.

23

425-1310

SLOTTED NUT,5/8"-18, G5

4шт.

24

432-820

COTTER PIN,1/8" x 1 1/4"

4шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
