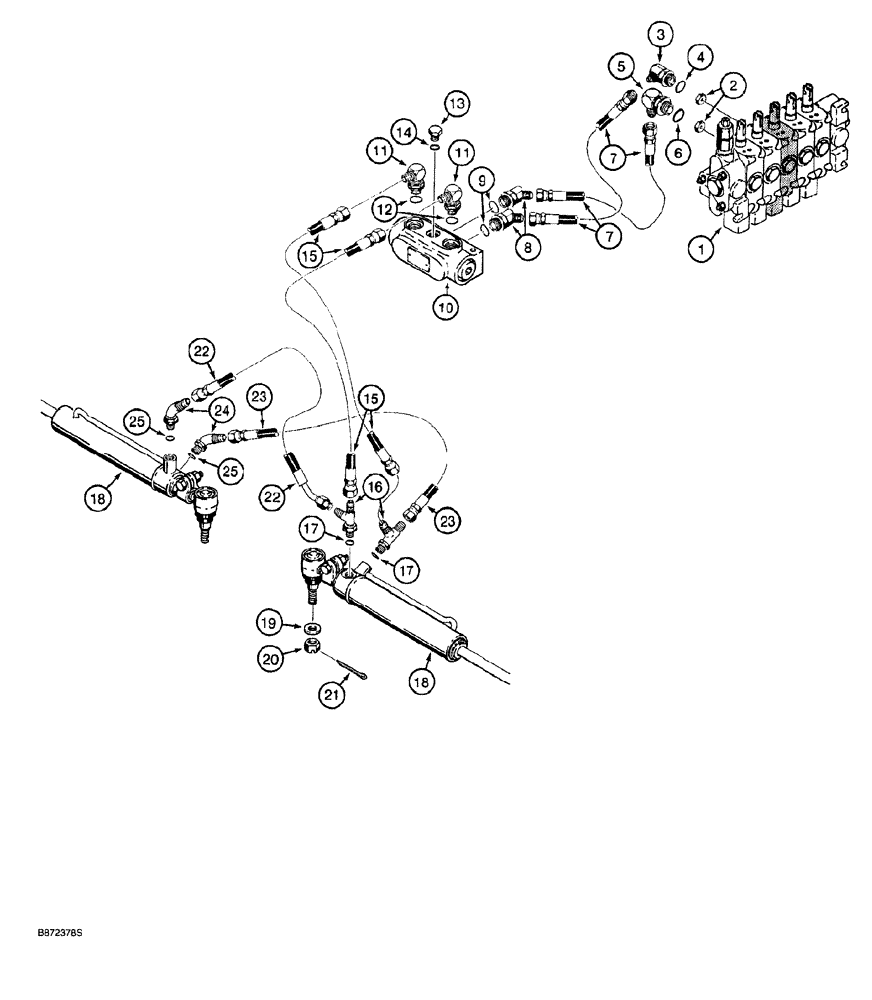

Запчасти Case 760 (05-026) - REAR STEERING HYD. CIRCUIT, MODELS W/O ELECTRONIC STEERING, PRIOR TO P.I.N. JAF0022965 (41) - STEERING

1

H672412

VALVE

ASSEMBLY, control, attachment on models with electronic steering, attachment and rear steering control on models w/out electronic steering, P/L Figs. 8-032 thru 8-038, see Fig 8-030 for mounting

1шт.

2

H270603

ORIFICE

PLATE, 0.055 inch, one way

2шт.

3

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Control Valve to Lockout Valve

2шт.

8

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

A161709

VALVE

ASSEMBLY, lockout, rear steering, parts list Fig. 5-044, see Fig. 5-008 for mounting

1шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 14

1шт.

15

S77121

HOSE

20 inch (508 mm) long, check valve to rear steering cylinder, replaces H171041, 18 inch

2шт.

16

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Right-hand cylinder, Includes: Ref. 17

2шт.

18

H672129

CYLINDER

ASSEMBLY, 1-1/2 (38) ID x 8-1/2 inch (215 mm) stroke, rear steering, parts list Fig.5-048

2шт.

19

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

1шт.

20

425-1310

SLOTTED NUT,5/8"-18, G5

4шт.

21

432-820

COTTER PIN,1/8" x 1 1/4"

4шт.

22

H433615

HOSE

23-1/2 inch (600 mm) long, rod end of left-hand cylinder to closed end of right-hand cylinder

1шт.

23

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Closed End of Left-Hand Cylinder to Rod End of Right-Hand Cylinder

1шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 25

2шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
