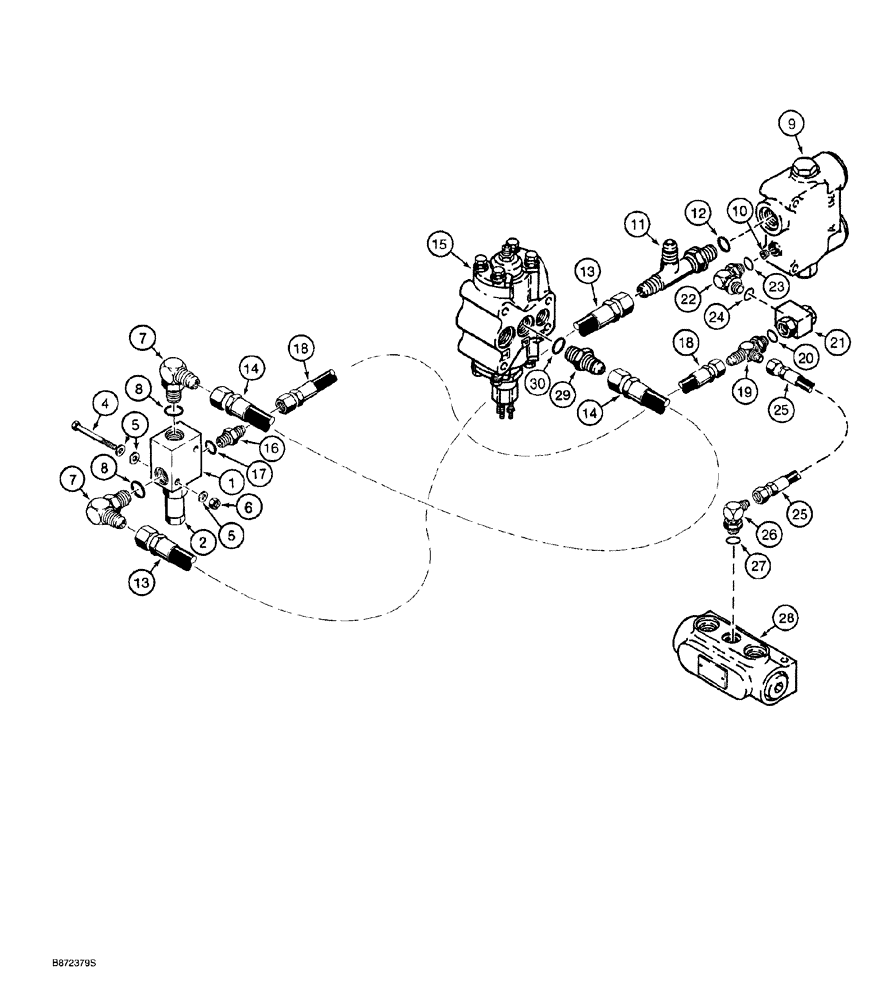

Запчасти Case 760 (05-022) - REAR STEERING HYD. CIRCUIT, PRESSURE REDUCING VALVE CIRCUIT, IF USED, MODELS W/ ELECTRONIC STEERING (41) - STEERING

H672747

VALVE

ASSEMBLY, pressure reducing, if used, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY pressure reducing valve

1шт.

N14661

CARTRIDGE

ASSEMBLY, relief, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE relief

1шт.

3

N14662

SEAL KIT

seal, cartridge assembly, not shown

1шт.

4

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

5

H426775

WASHER

flat, special, hardened

6шт.

6

230-4215

NUT,5/16"-18, GA

2шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY, priority flow divider, see Figs. 5-038 and 5-040 for correct valve, see Fig. 5-008 for correct valve, see Fig. 5-008 for mounting hardware

1шт.

10

H434622

ORIFICE

PLATE orifice, 0.035 inch

1шт.

11

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H248492

HYDRAULIC HOSE,9.52 mm ID x 736.60 mm, SAE 100R1

Priority Valve to Pressure Reducing Valve

1шт.

14

R30835

HOSE ASSY.

19 inch (483 mm) long, pressure reducing valve to rear steering control valve

1шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY, control, rear steering, parts list Fig. 5-034 or 5-036, see Fig. 5-008 for mounting

1шт.

16

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Pressure Reducing Valve to Rear Steering Check Valve

1шт.

19

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 20

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

H672224

VALVE

check, rear steering

1шт.

22

H433747

FITTING

ELBOW, 90 degree, special, Includes: Ref. 23 and 24

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

At priority flow divider valve

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

At rear steering check valve

1шт.

25

S77121

HOSE

20 inch (508 mm) long, check valve to rear steering cylinder lockout valve, replaces H171104, 18 inch

1шт.

26

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, at rear steering cylinder lockout valve, Includes: Ref. 27

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY, lockout, rear steering, see Figs. 5-044 and 5-046 for correct valve, see Fig. 5-008 for mounting hardware

1шт.

29

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 30

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
