Запчасти Case 760 (05-018) - REAR STEERING HYDRAULIC CIRCUIT, TANDEM PUMP TO VALVES, MODELS WITH ELECTRONIC STEERING (41) - STEERING

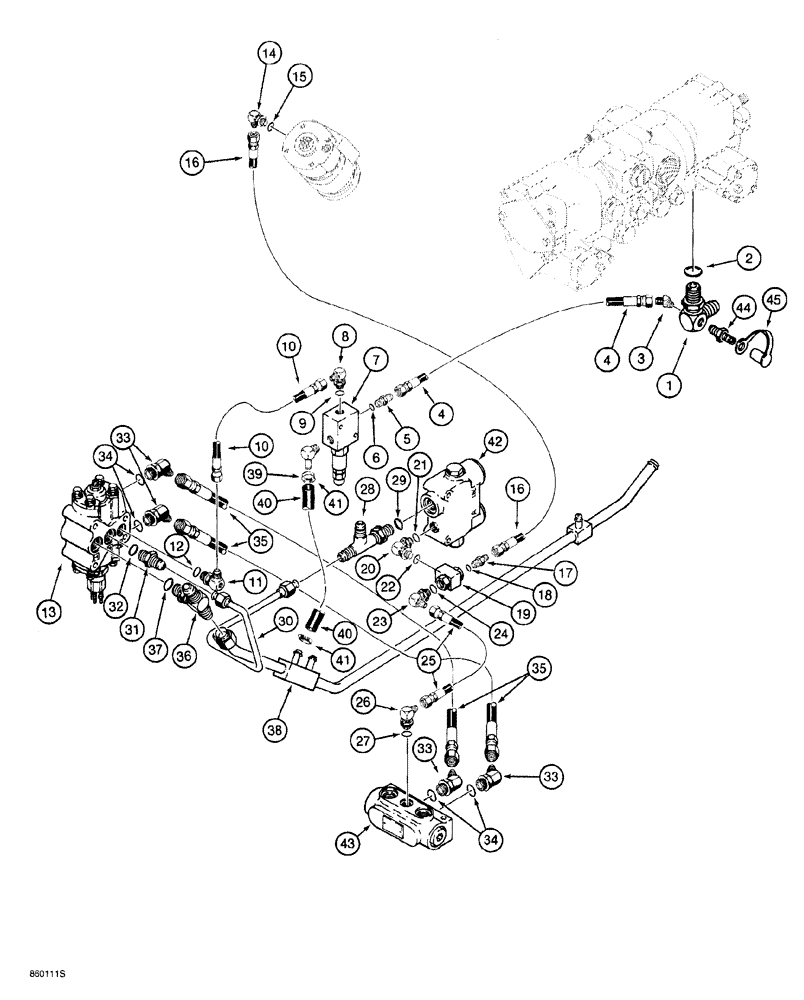

Схема запчастей Case 760 - (05-018) - REAR STEERING HYDRAULIC CIRCUIT, TANDEM PUMP TO VALVES, MODELS WITH ELECTRONIC STEERING (41) - STEERING
23
30
27
39
35
43
8
22
6
21
11
14
10
25
40
31
9
10
2
45
34
26
24
33
34
18
17
29
16
33
41
44
35
3
40
16
42
1
19
13
4
41
4
38
36
28
5
32
37
7
12
33
20
15

Артикул

Название

Примечание

Количество

1

H434005

FITTING

ELBOW, 90 degree, special, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

ELBOW, 45 degree, 7/16-20 flare x 1/8 inch PT

1шт.

4

H433675

HOSE ASSY.

39 inch (1000 mm) long, tandem pump to pressure regulator

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 6

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

A185477

VALVE

ASSEMBLY pressure regulating, parts list Fig. 5-042

1шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 degree, 7/16-20 inch flare x adj. O-ring boss, Includes: Ref. 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

H433674

HOSE

18 inch (450 mm) long, pressure regulating valve to rear steering control valve

1шт.

11

H434004

FITTING

ELBOW, 90 degree, special, Includes: Ref. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY, control, rear steering, parts list Fig. 5-034 or 5-036, see Fig. 5-008 for mounting

1шт.

14

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 degree, 7/16-20 inch flare x adj. O-ring boss, Includes: Ref. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

L52207

HYDRAULIC HOSE,0.25" ID x 63.00", SAE 100R1

Steering Valve to Check Valve

1шт.

17

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Straight, O-ring boss, Incl. Ref. 18

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

H672224

VALVE

check, rear steering

1шт.

20

H433747

FITTING

ELBOW, 90 degree, special, Includes: Ref. 21 and 22

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 24

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

S77121

HOSE

20 inch (508 mm) long, replaces H171104, 18 inch hose, check valve to rear steering cylinder

1шт.

26

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, at rear steering cylinder lockout valve, Includes: Ref. 27

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

H672276

TUBE,12.7 mm OD

rear priority flow divider valve to rear steering control valve, see Fig. 5-022 for models equipped w/H672747 pressure reducing valve, if used

1шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 34

4шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Rear Steering Control Valve to Rear Steering Cylinder Lockout Valve

2шт.

36

218-5503

TEE,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring Br

TEE, 7/8-1 4 adj. O-ring branch x 1-1/16-12 inch flare x flare, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

H672485

TUBE,19.05 mm OD

manifold, rear steering valve drain

1шт.

39

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

40

H433723

LARGE HOSE

HOSE,LARGE 8 inch (200 mm) long, cut from H434205, return, see below

1шт.

41

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Adj.

2шт.

42

REF

INSTRUCTION

VALVE ASSEMBLY, priority flow divider, see Figs.5-038 and 5-040 for correct valve, see Fig. 5-008 for mounting hardware

1шт.

43

REF

INSTRUCTION

VALVE ASSEMBLY, lockout, rear steering, see Figs. 5-044 and 5-046 for correct valve, see Fig. 5-008 for mounting hardware

1шт.

44

H434164

COUPLING

quick check, steering diagnostic device

1шт.

45

H434163

DUST CAP

1шт.

H434205

HYDRAULIC HOSE,9.52 mm ID x 655.00 mm, SAE 30R2 Type 2

1шт.
