Запчасти Case 760 (05-010) - FRONT STEERING HYDRAULIC CIRCUIT, MODELS WITH ELECTRONIC STEERING (41) - STEERING

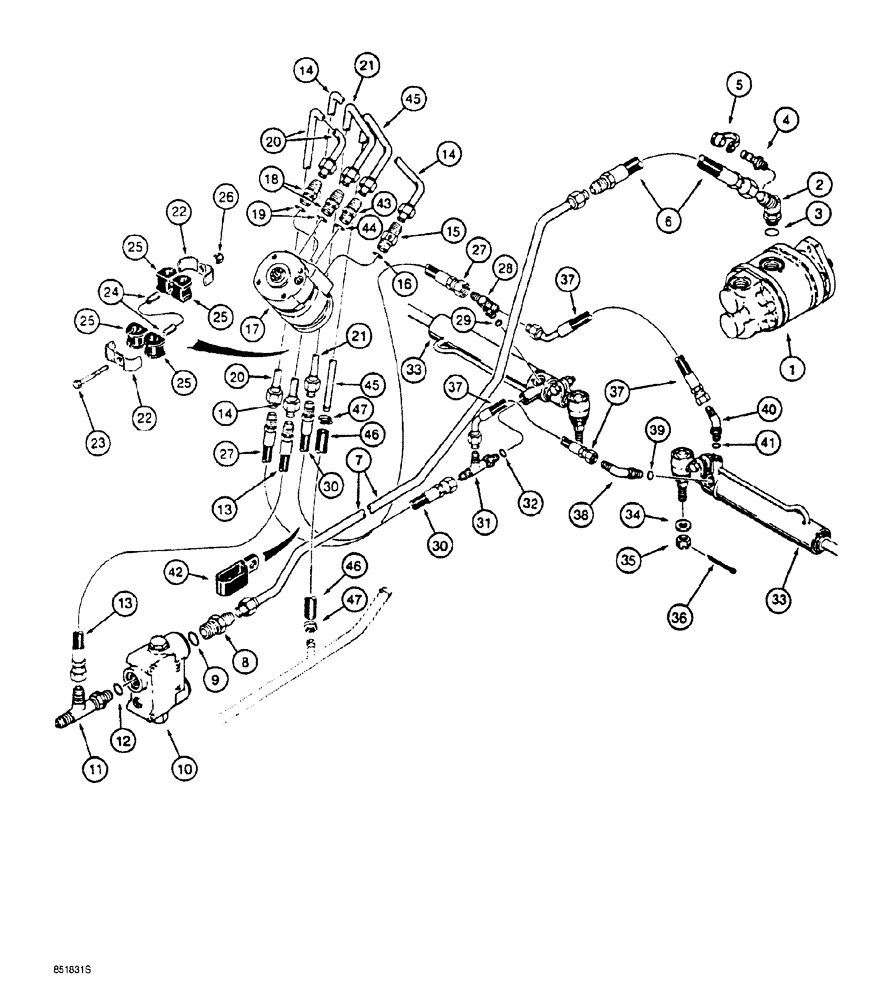

Схема запчастей Case 760 - (05-010) - FRONT STEERING HYDRAULIC CIRCUIT, MODELS WITH ELECTRONIC STEERING (41) - STEERING
13
37
34
18
25
25
9
14
30
5
42
3
45
21
41
13
27
23
25
7
20
14
37
33
35
40
24
46
15
19
37
4
46
31
2
47
8
43
38
21
39
30
33
47
27
45
14
11
32
6
44
22
28
26
22
1
36
20
29
16
17
10
12
25

Артикул

Название

Примечание

Количество

1

H672435

PUMP, HYDRAULIC

ASSEMBLY, dual, parts list Fig. 5-032

1шт.

2

H434165

ELBOW

45 degree, special, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

H434164

COUPLING

quick check, steering diagnostic device

1шт.

5

H434163

DUST CAP

1шт.

6

H244913

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 100R2

Dual Pump to Priority Valve Tube

1шт.

7

H672274

TUBE,15.9 mm OD

priority flow divider valve supply

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY, priority flow divider, see Figs. 5-038 and 5-040 for correct

1шт.

11

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H433671

HOSE

39-3/8 inch (1000 mm) long, front steering supply

1шт.

14

H672268

TUBE,12.7 mm OD

front steering supply hose to steering valve

1шт.

15

L104449

LOCK VALVE

check, steering, Includes: Ref. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

H672219

VALVE

ASSEMBLY, steering control, parts list Fig. 5-030, no longer available, order 141535A1

1шт.

17

141535A1

VALVE

ASSEMBLY, steering control, parts list Fig. 5-031A

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

H672268

TUBE,12.7 mm OD

valve to cylinder, right-hand steering

1шт.

21

H672271

TUBE,12.7 mm OD

valve to cylinder, left-hand steering

1шт.

22

D68646

CLAMP

tubes

2шт.

23

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

24

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

spacer, clamp

2шт.

25

D67296

GROMMET

INSULATOR rubber, tubes

4шт.

26

230-4216

LOCK NUT,3/8"-16, GA

1шт.

27

H433672

HYDRAULIC HOSE,9.52 mm ID x 1200.00 mm, SAE 100R1

Front steering

1шт.

28

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch adj. O-ring branch x flare x flare, left-hand cylinder, Includes: Ref. 29

1шт.

30

H433632

HYDRAULIC HOSE,9.52 mm ID x 1100.00 mm, SAE 100R1

Front steering

1шт.

31

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Left-hand cylinder, Includes: Ref. 32

1шт.

33

H672129

CYLINDER

ASSEMBLY, 1-1/2 (38) ID x 8-1/2 inch (215 mm) stroke, front steering, parts list Fig.5-048

2шт.

34

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

1шт.

35

425-1310

SLOTTED NUT,5/8"-18, G5

4шт.

36

432-820

COTTER PIN,1/8" x 1 1/4"

4шт.

37

H433615

HOSE

23-1/2 inch (600 mm) long, Serial Range: cylinder-cylinder

2шт.

38

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 39

1шт.

40

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, right-hand cylinder, Includes: Ref. 41

1шт.

42

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

cylinder hoses, use existing hardware

1шт.

43

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 44

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

H672273

TUBE,12.7 mm OD

steering valve to return hose

1шт.

46

H433725

HOSE

21-5/8 inch (550 mm) long, front steering return

1шт.

47

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Adj.

2шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 48
