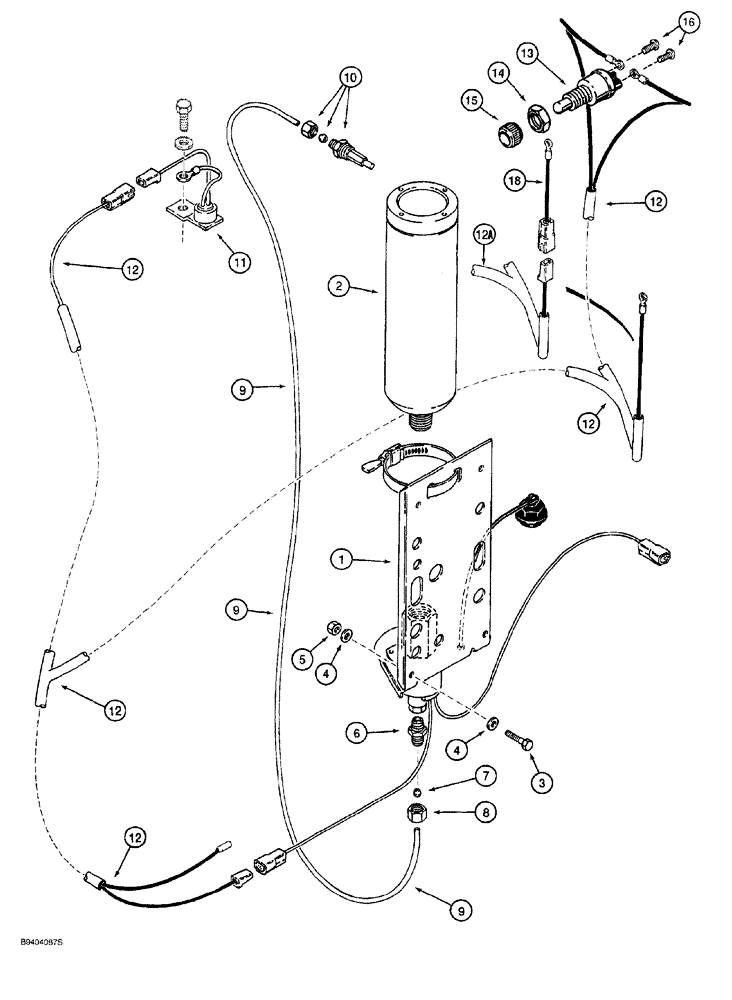

Запчасти Case 760 (02-010) - COLD START SYSTEM (10) - ENGINE

1

A172116

VALVE

ASSEMBLY cold start, 3 cc, includes bracket, component parts not serviced separately

1шт.

2

A171940

CYLINDER

starting fluid

1шт.

3

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

hex, 7/16 NC x 3/4 inch

3шт.

4

496-21047

WASHER

flat, 15/32 x 59/64 x 7/64 inch, hardened

6шт.

5

230-4217

LOCK NUT,7/16"-14, GA

hex, self-locking, 7/16 inch NC

3шт.

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

compression, 1/8 tube O.D. x 1/8 inch PT, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

9

H434360

TUBE,3.18 mm OD x 1730 mm L

68 inch (1728 mm) long, valve to nozzle

1шт.

10

A172900

NOZZLE CAP

ASSEMBLY atomizer, cold start injector, dual orifice, component parts not serviced separately

1шт.

11

A171943

IGNITION SWITCH

SENDER temperature, circuit breaking, includes lead wires, uses existing intake manifold mounting

1шт.

12

H434361

HARNESS

cold start, no longer available, for service order Ref. 12A, 109493A1

1шт.

12a

109493A1

HARNESS

cold start

1шт.

L72776

SWITCH

ASSEMBLY push button, cold start, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

SWITCH push button, cold start

1шт.

14

H275784

JAM NUT

hex, special

1шт.

15

D73741

NUT

hex, special

1шт.

16

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

machine, round head slotted, No.10 NF x 1/4 inch

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

18

109391A1

ADAPTER

wire, cold start

1шт.
