Запчасти Case 760 (05-008) - STEERING CIRCUIT VALVES, PUMP, AND MOUNTING (41) - STEERING

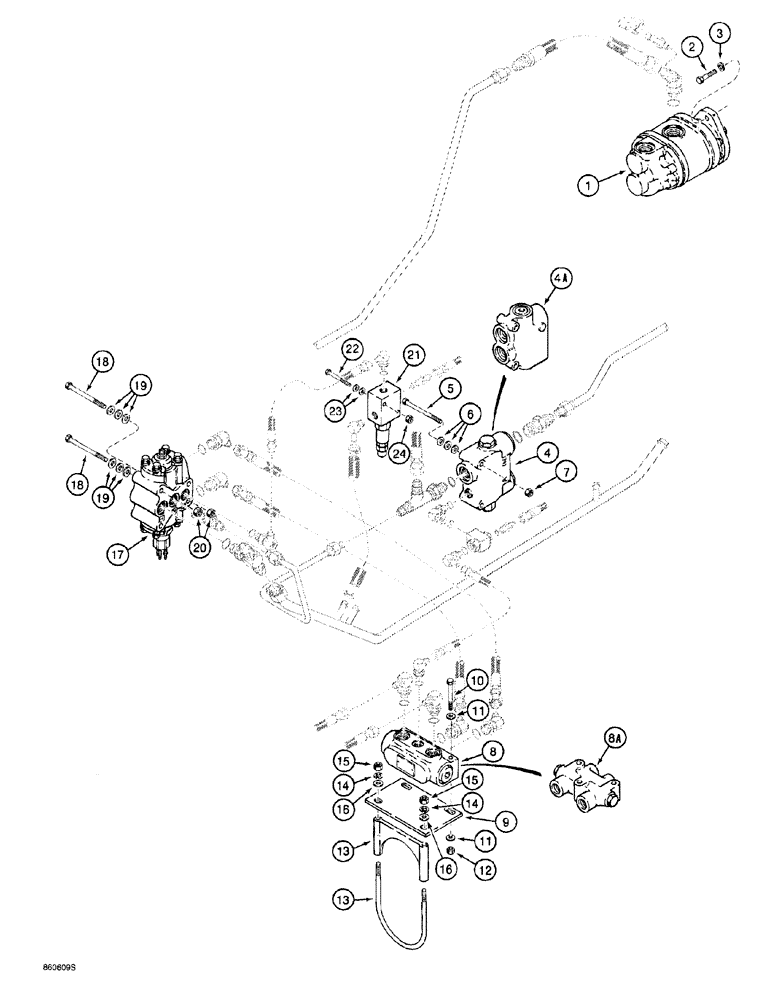

Схема запчастей Case 760 - (05-008) - STEERING CIRCUIT VALVES, PUMP, AND MOUNTING (41) - STEERING
8
16
15
13
16
3
18
19
15
6
1
22
23
9
10
20
19
4a
18
17
4
11
24
12
13
2
21
14
5
14
7
11
8a

Артикул

Название

Примечание

Количество

1

H672435

PUMP, HYDRAULIC

ASSEMBLY, dual, parts list Fig. 5-032

1шт.

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

H672118

VALVE

ASSEMBLY, priority flow divider, parts list Fig. 5-038, Serial Range: -JAF0022965

1шт.

4a

H672904

VALVE

ASSEMBLY, priority flow divider, parts list Fig. 5-040, Start Serial: JAF0022965

1шт.

5

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

6

H426775

WASHER

flat, special, hardened

6шт.

7

230-4215

NUT,5/16"-18, GA

2шт.

8

A161709

VALVE

ASSEMBLY lockout, steering, parts list Fig. 5-044, Serial Range: -JAF0022965

1шт.

8a

H672547

VALVE

ASSEMBLY lockout, steering, parts list Fig. 5-046, Start Serial: JAF0022965

1шт.

9

H435885

LARGE PLATE

PLATE, LARGE lockout, valve mounting

1шт.

10

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

11

H426775

WASHER

flat, special, hardened

4шт.

12

230-4215

NUT,5/16"-18, GA

2шт.

L60408

CLAMP

ASSEMBLY, valve mounting plate, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

CLAMP, valve mounting plate

1шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY, control, rear steering, see Figs. 5-034 and 5-036 for correct assembly and components

1шт.

18

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

20

230-4216

LOCK NUT,3/8"-16, GA

2шт.

21

A185477

VALVE

ASSEMBLY, pressure regulating, rear steering, parts list Fig. 5-042

1шт.

22

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

23

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

4шт.

24

230-4214

LOCK NUT,1/4"-20, GA

2шт.
