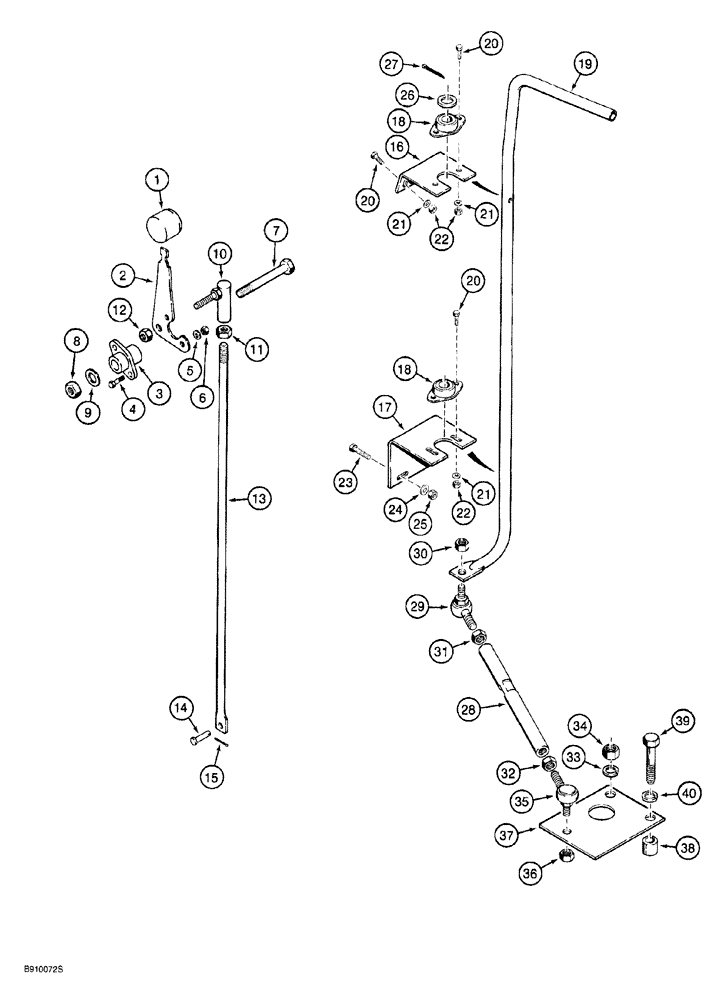

Запчасти Case 760 (05-006) - REAR STEERING CONTROLS, MDLS W/O ELEC. STEERING, VALVE ACTUATING ROD (ITEM 13) HAS MALE THREADS (41) - STEERING

1

A177440

KNOB

rear wheel positioner control, yellow, see Fig. 9-46 for attachment lift controls

1шт.

2

H436209

HANDLE

LEVER, rear wheel positioner control

1шт.

3

A162299

BEARING,15.95mm ID

BEARING flange

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

2шт.

6

230-4214

LOCK NUT,1/4"-20, GA

2шт.

7

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

8

232-41110

NUT,5/8"-11, GC

1шт.

9

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

10

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

3/8 inch NF, replaces A60307

1шт.

11

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

12

232-4616

LOCK NUT,3/8"-24, GC

1шт.

13

H435754

LINK

ROD, valve lift control, handle to valve, 630 mm long

1шт.

14

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN special

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

16

H434650

ANGLE

BRACKET bearing mounting, upper

1шт.

17

H434651

ANGLE

BRACKET bearing mounting, lower

1шт.

18

H755785

FLANGED BEARING,15.88mm ID

flange

2шт.

19

H434649

TUBE,15.9 mm OD

rear wheel position indicator

1шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

21

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

6шт.

22

230-4214

LOCK NUT,1/4"-20, GA

6шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

25

230-4216

LOCK NUT,3/8"-16, GA

2шт.

26

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

27

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

28

H434652

ROD

rear wheel position indicator

1шт.

29

R47941

JOINT TURNING

ball, male, 3/8 inch NF, Serial Range: rod-tube

1шт.

30

232-4616

LOCK NUT,3/8"-24, GC

1шт.

31

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

32

125-11011

NUT,3/8"-24, G5, LH

1шт.

33

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

34

525-5105

NUT,M14 x 1.5, Cl 8

1шт.

35

H433969

JOINT TURNING

ball, left-hand threads, rod

1шт.

36

232-4616

LOCK NUT,3/8"-24, GC

1шт.

37

H434766

ARM

wheel position indicator

1шт.

38

H357764

SPACER

wheel position indicator arm

1шт.

39

814-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

1шт.

40

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.
