(05-002) - STEERING WHEEL AND MOUNTING

Запчасти Case 760 (05-002) - STEERING WHEEL AND MOUNTING (41) - STEERING

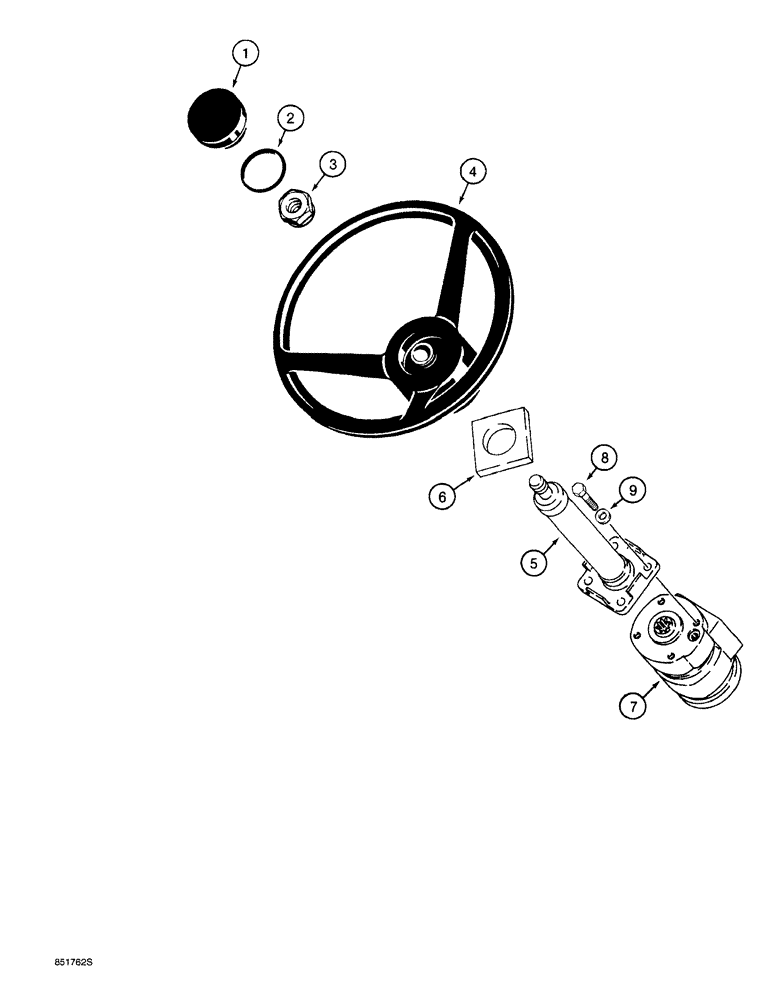

Схема запчастей Case 760 - (05-002) - STEERING WHEEL AND MOUNTING (41) - STEERING
3
6
9
8
5
7
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62210

PLUG

CAP steering wheel

1шт.

2

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

lock, steering wheel retaining

1шт.

4

A65544

STEERING WHEEL

Tractor

1шт.

5

H672220

STEERING COLUMN

component parts not serviced separately

1шт.

6

H433646

SPACER

steering column

1шт.

7

H672219

VALVE

ASSEMBLY, steering control, parts list Fig. 5-030, no longer available, order 141535A1

1шт.

7

141535A1

VALVE

ASSEMBLY, steering control, parts list Fig. 5-031A

1шт.

8

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.
