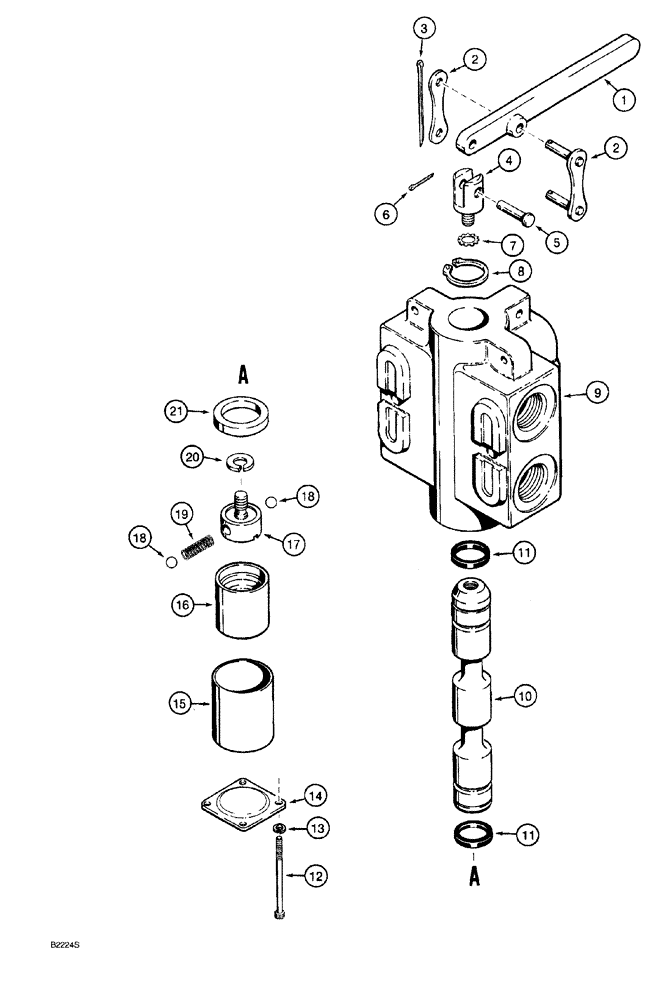

Запчасти Case 760 (08-166) - TRENCHER/PLOW SELECTOR VALVE, USED ON MODELS WITH QUAD OPTION (35) - HYDRAULIC SYSTEMS

H672979

VALVE

ASSEMBLY, selector, trencher/plow, Includes: Ref. 1 - 21

1шт.

1

D23698

HANDLE

control, selector valve

1шт.

2

D23696

DRAG LINK

handle

1шт.

3

32-432

COTTER PIN,1/16" x 2"

1шт.

4

D23694

ADAPTER

handle to valve spool

1шт.

5

D23693

AXLE PIN

clevis, 1/4 x 1 inch long, special

1шт.

6

432-48

COTTER PIN,1/16" x 1/2"

1шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

8

100-11100

SNAP RING,#100, Ext

1шт.

9

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

11

D23691

O-RING

valve spool

2шт.

12

61-30836

HEX SOC SCREW,#6 - 32 x 2 1/4"

hex socket, No. 8 NC x 2-1/4 inch

4шт.

13

492-11008

LOCK WASHER,#8

4шт.

14

H436379

COVER

detent

1шт.

15

H436378

SLEEVE

detent

1шт.

16

H436375

SLEEVE

HOLDER detent

1шт.

17

H436377

DETENT

selector valve

1шт.

18

211-1009

BALL

chrome alloy steel, 9/32 inch, grade 24

2шт.

19

H436376

SPRING

detent

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

H436380

SPACER

detent

1шт.
