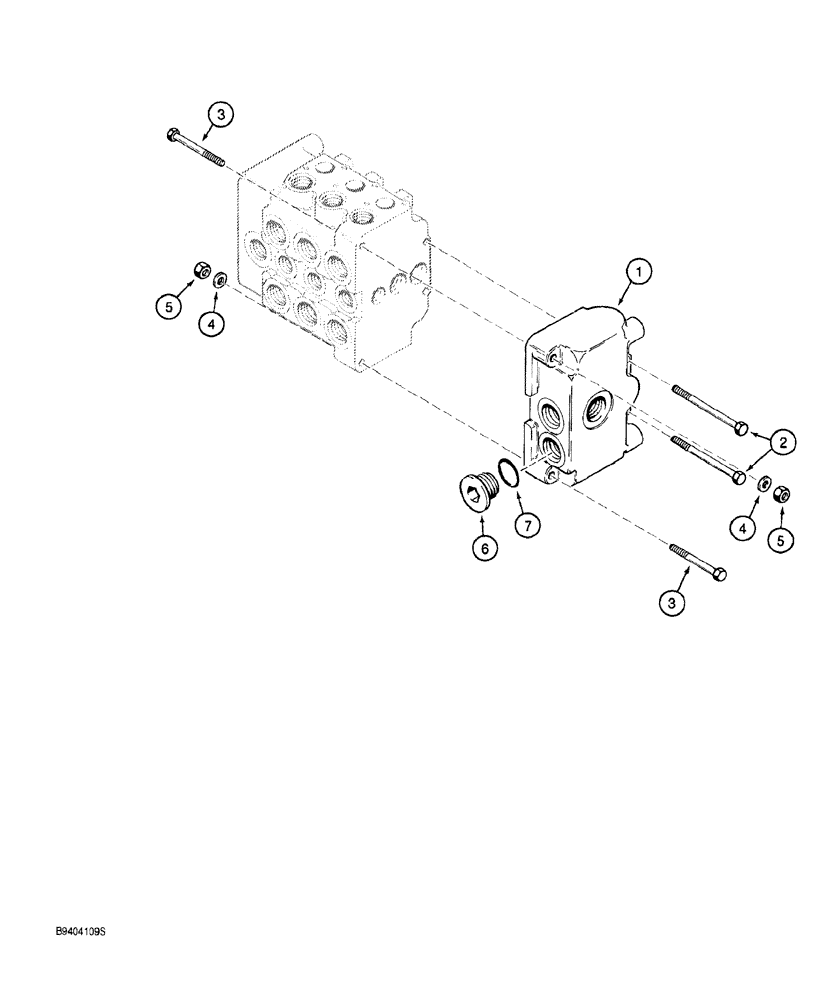

Запчасти Case 760 (08-165G) - PLOW CONTROL VALVE ASSEMBLY - H674318, END PLATE MOUNTING (35) - HYDRAULIC SYSTEMS

H674318

VALVE

ASSEMBLY, control, complete parts list on Figs. 8-112 - 8-118, Includes: Ref. 1 - 7

1шт.

1

101488A1

LARGE PLATE

PLATE, LARGE end

1шт.

2

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

2шт.

3

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

5

425-114

NUT,1/4"-28, G5

4шт.

6

86625138

PLUG,7/18" - 14

If Used, Includes Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
