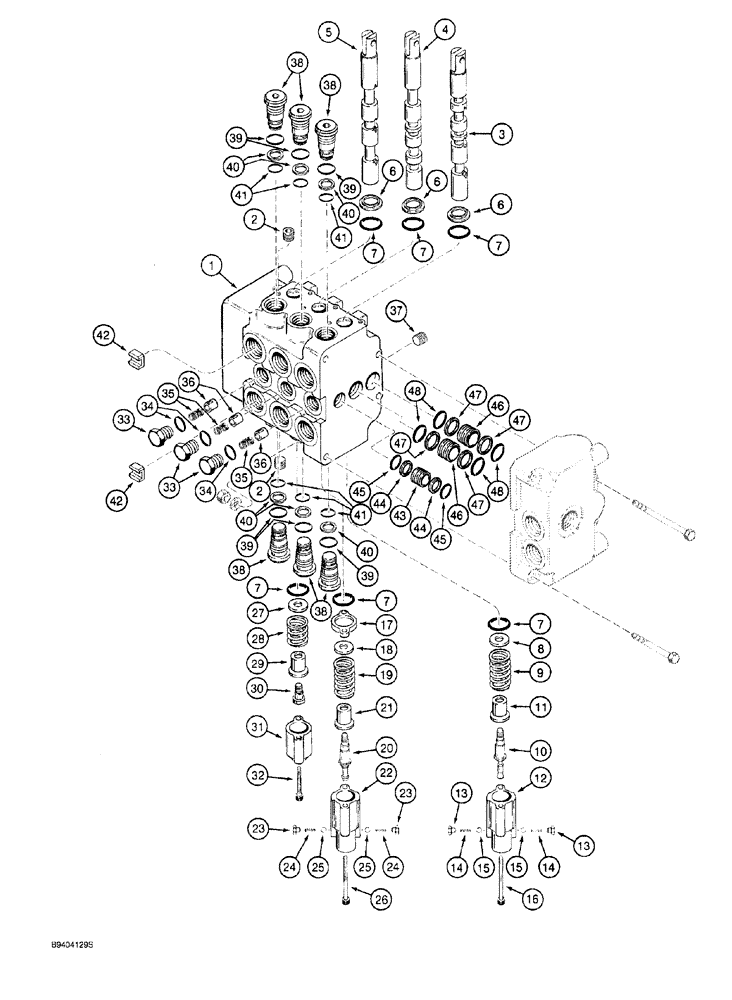

Запчасти Case 760 (08-165C) - PLOW CONTROL VALVE ASSEMBLY - H674318, INLET AND OUTLET SECTION (35) - HYDRAULIC SYSTEMS

H674318

VALVE

ASSEMBLY, control, complete parts list on Figs. 8-112 - 8-118, Includes: Ref. 1 - 48

1шт.

101489A1

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, lift, swing and steering, 3 spool outlet, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

BODY section

1шт.

2

221-841

PLUG

hex socket, 1/4 inch PT

2шт.

3

NSS

NOT SOLD SEPARAT

SPOOL float in

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL float out

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

6

H438926

WIPER SEAL

spool

3шт.

7

H438030

O-RING

spool

6шт.

101491A1

KIT

float in detent, Includes: Ref. 8 - 16

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER flat, special

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING return, spool

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL detent

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER spring

1шт.

12

NSS

NOT SOLD SEPARAT

CAP detent end

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG detent

2шт.

14

N9506

COIL SPRING

detent

2шт.

15

NSS

NOT SOLD SEPARAT

BALL steel

2шт.

16

NSS

NOT SOLD SEPARAT

SCREW cap

2шт.

101490A1

KIT

float out detent, Includes: Ref. 17 - 26

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER spool

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER flat, special

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING return, spool

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL detent

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER spring

1шт.

22

NSS

NOT SOLD SEPARAT

CAP detent end

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG detent

2шт.

24

N9506

COIL SPRING

detent

2шт.

25

NSS

NOT SOLD SEPARAT

BALL steel

2шт.

26

62-31032

HEX SOC SCREW,#10 - 32 x 2"

hex socket head, No. 10 NF x 2 inch

2шт.

H438021

SET

KIT spring centering, Includes: Ref. 27 - 32

1шт.

27

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

28

N9539

TENSION SPRING

centering, return

1шт.

29

NSS

NOT SOLD SEPARAT

SPACER spring

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT shoulder

1шт.

31

NSS

NOT SOLD SEPARAT

CAP detent end

1шт.

32

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

H438024

SET

KIT load check, Includes: Ref. 33 - 37

3шт.

33

H438231

PLUG

load check, Includes: Ref. 34

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

36

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

37

H438960

PLUG

seal

1шт.

H438954

PLUG

ASSEMBLY, body, if used, Includes: Ref. 38 - 41

6шт.

38

NSS

NOT SOLD SEPARAT

PLUG body

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

40

H438339

GASKET

RING backup, O-ring

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

101484A1

LARGE PLATE

PLATE, LARGE orifice

2шт.

43

H438029

TUBE

body, small, Includes: Ref. 44 and 45

1шт.

44

H438044

GASKET

RING backup

2шт.

45

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

46

H438028

TUBE

body, large, Includes: Ref. 47 and 48

2шт.

47

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, sleeve O-ring

2шт.

48

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

Sleeve

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
