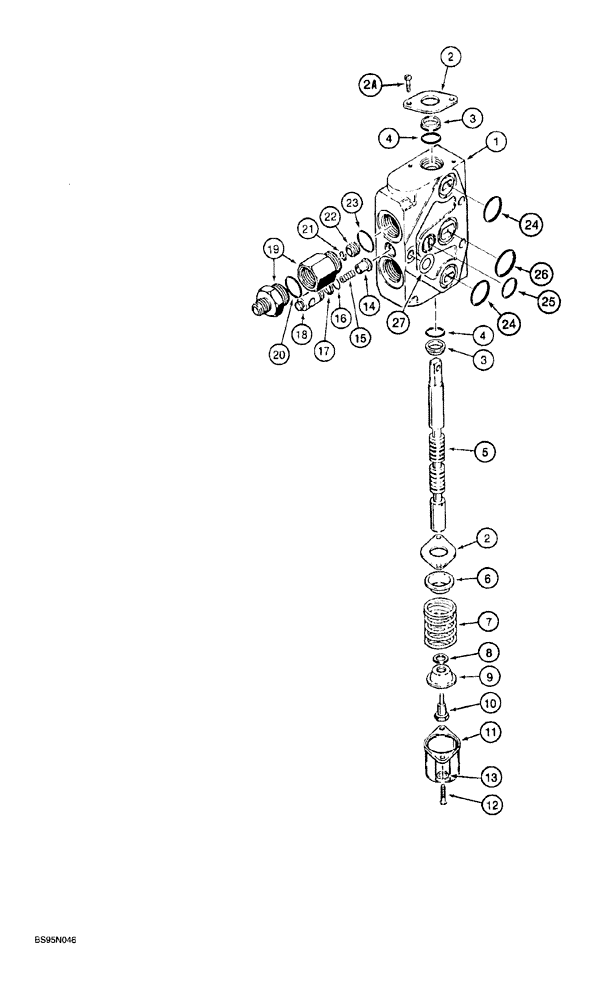

Запчасти Case 760 (08-164) - PLOW CONTROL VALVE - H672781 (35) - HYDRAULIC SYSTEMS

H672781

VALVE

ASSEMBLY, control, plow, parts list Figs. 8-158 - 8-164, Includes: Ref. 1 - 27

1шт.

H673147

ELEMENT

SECTION ASSEMBLY, blade, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY section

1шт.

2

N14042

SHIN

RETAINER seal

2шт.

2a

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

2шт.

3

N14043

WIPER SEAL

SEAL

2шт.

4

H435567

O-RING

spool

2шт.

H655902

KIT

spool, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

6

H401208

SEAT PLATE

spring, upper

1шт.

7

H401216

SPRING

spool

1шт.

8

1329639C1

SPACER

spool

1шт.

9

H401208

SEAT PLATE

spring, lower

1шт.

10

H401190

SCREW

special, spool end

1шт.

H401182

CAP

ASSEMBLY, spool end, no longer available, order components, Includes: Ref. 11 - 13

1шт.

11

H438212

CAP

spool

1шт.

12

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

13

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

14

H438207

GUIDE

load check

1шт.

Part of Load check kit, P/N N14044

1шт.

15

H438206

SPRING

load check

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of Load check kit, P/N N14044

1шт.

17

N14047

GASKET

RING backup, load check

1шт.

Part of Load check kit, P/N N14044

1шт.

18

H438205

VALVE

POPPET load check

1шт.

H673148

RESTRICTOR

FITTING ASSEMBLY, restrictor, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

FITTING restrictor

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING fitting

1шт.

21

H435553

ORIFICE

RESTRICTOR valve

1шт.

22

H435562

PLUG

restrictor

1шт.

23

H398685

O-RING

fitting to valve section

1шт.

24

H438208

O-RING

body, medium

2шт.

25

H438209

O-RING

body, small

1шт.

26

H438210

O-RING

machine, pan Phillips, 1/4 NC x 1/2 inch

1шт.

27

H438211

SHIM

body

1шт.

N14044

KIT

load check, Includes: Ref. 14, 16 and 17

1шт.
