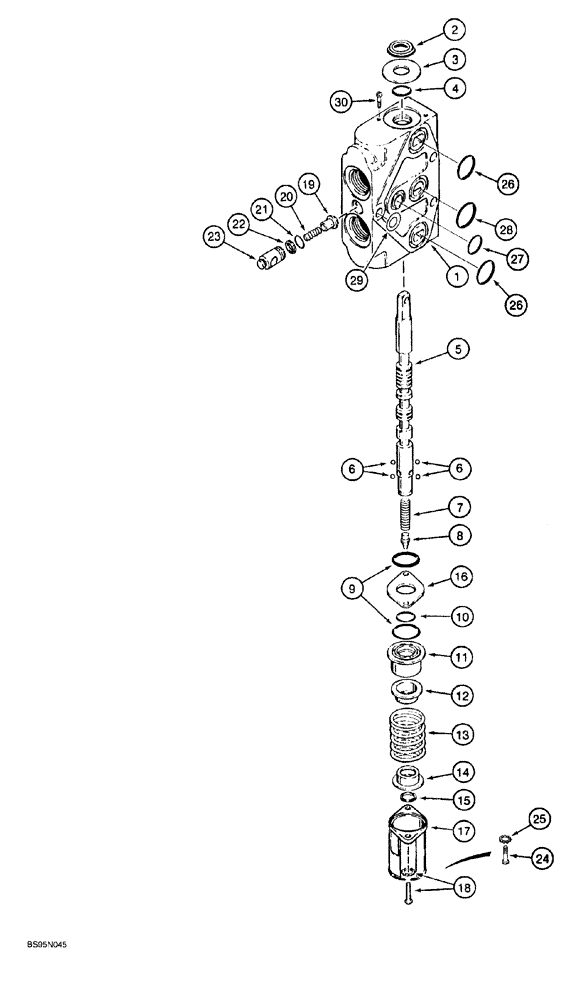

Запчасти Case 760 (08-162) - PLOW CONTROL VALVE - H672781, LIFT AND SWING SECTIONS (35) - HYDRAULIC SYSTEMS

H672781

VALVE

ASSEMBLY, control, plow, parts list Figs. 8-158 - 8-164, Includes: Ref. 1 - 30

1шт.

H673146

ELEMENT

SECTION ASSEMBLY, lift and swing, Includes: Ref. 1 - 30

2шт.

1

NSS

NOT SOLD SEPARAT

BODY section

1шт.

2

N14043

WIPER SEAL

SEAL

1шт.

3

H435554

SPACER

RETAINER seal

1шт.

4

H435567

O-RING

spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

6

H435557

BALL

steel

4шт.

7

H435556

SPRING

detent poppet

1шт.

8

H435558

PIN

POPPET detent

1шт.

9

H438208

O-RING

detent sleeve and retainer

2шт.

10

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

11

H435555

CAGE

SLEEVE detent

1шт.

12

H435560

GASKET

SEAT spring, upper

1шт.

13

H401216

SPRING

spool

1шт.

14

H435561

GASKET

SEAT spring, lower

1шт.

15

H435559

CIRCLIP

RING snap, spool retaining

1шт.

16

N14042

SHIN

RETAINER seal

1шт.

17

H411678

CAP

spool end

1шт.

18

H435552

SCREW

machine, pan head Phillips, special, includes external tooth lock washer, no longer available, order Ref. 24, 440-12512 screw and Ref. 25, 493-41026 washer

2шт.

19

H438207

GUIDE

load check

1шт.

Part of Load check kit, P/N N14044

1шт.

20

H438206

SPRING

load check

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of Load check kit, P/N N14044

1шт.

22

N14047

GASKET

RING backup, load check

1шт.

Part of Load check kit, P/N N14044

1шт.

23

H438205

VALVE

POPPET load check

1шт.

24

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

25

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

26

H438208

O-RING

body, medium

2шт.

27

H438209

O-RING

body, small

1шт.

28

H438210

O-RING

body, large

1шт.

29

H438211

SHIM

body

1шт.

30

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

2шт.

N14044

KIT

load check, Includes: Ref. 19, 21 and 22

1шт.
