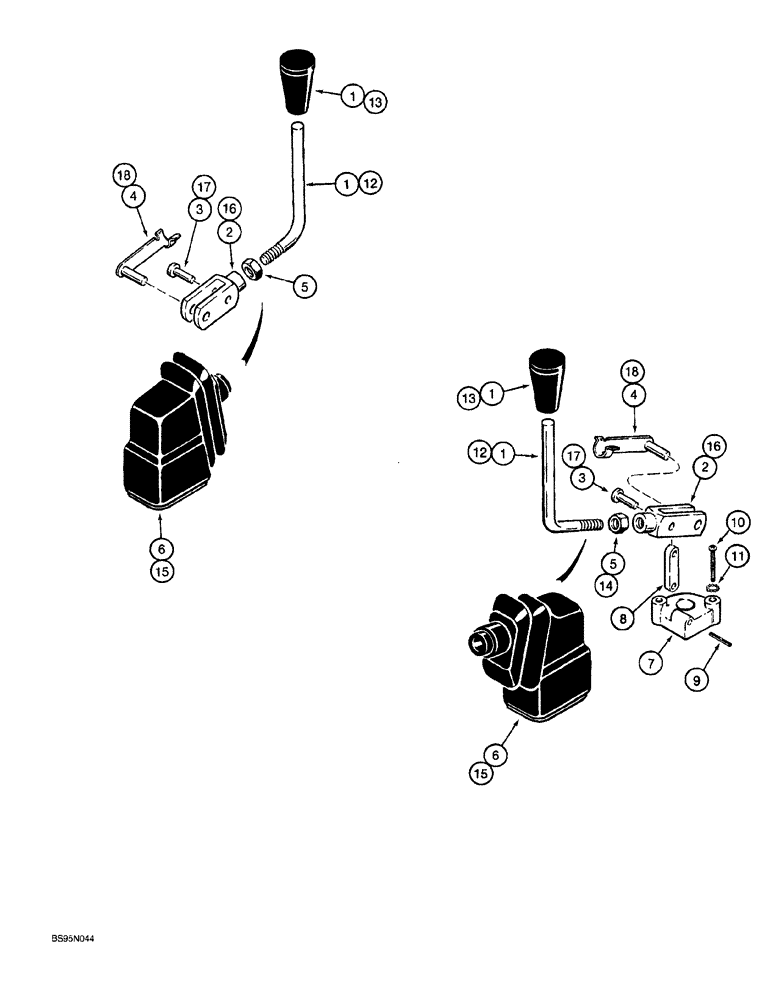

Запчасти Case 760 (08-160) - PLOW CONTROL VALVE - H672781, CONTROL LEVERS (35) - HYDRAULIC SYSTEMS

H672781

VALVE

ASSEMBLY, control, plow, parts list Figs. 8-158 - 8-164, Includes: Ref. 1 - 18

1шт.

1

N14122

LEVER

control valve, includes knob, lever has 7/16 inch NC threads, if used

3шт.

2

H438219

CLEVIS

control lever, used with N14122 lever, replaces N14123

3шт.

3

427-4077

CLEVIS PIN,1/4" x .770"

Hardened, Used with N14122 lever

3шт.

4

N14124

CIRCLIP

clevis, used with N14122 lever

3шт.

5

425-147

JAM NUT,Jam, 7/16"-14, G5

hex, jam, 7/16 inch NC, used with N14122 lever

3шт.

6

N14125

BOOT

control lever

3шт.

N13944

SUPPORT

BRACKET ASSEMBLY, lever mounting, Includes: Ref. 7 - 11

1шт.

7

H438217

BRACKET

mounting, lever

1шт.

8

H438218

LINK

lever

1шт.

9

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

10

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

machine, pan head slotted, 1/4 NC x 1-1/4 inch

2шт.

11

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

H674024

HANDLE

LEVER ASSEMBLY, control, Includes: Ref. 12 - 18

1шт.

H674697

LEVER

ASSEMBLY, control, lever has 3/8 inch NF threads, if used, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

LEVER control, order H674697 assembly

1шт.

13

H398867

GRIP

KNOB lever

1шт.

14

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

15

N14125

BOOT

control lever

1шт.

16

H438219

CLEVIS

control lever

1шт.

17

H438220

PIN

clevis, special

1шт.

18

N14124

CIRCLIP

clevis

1шт.
