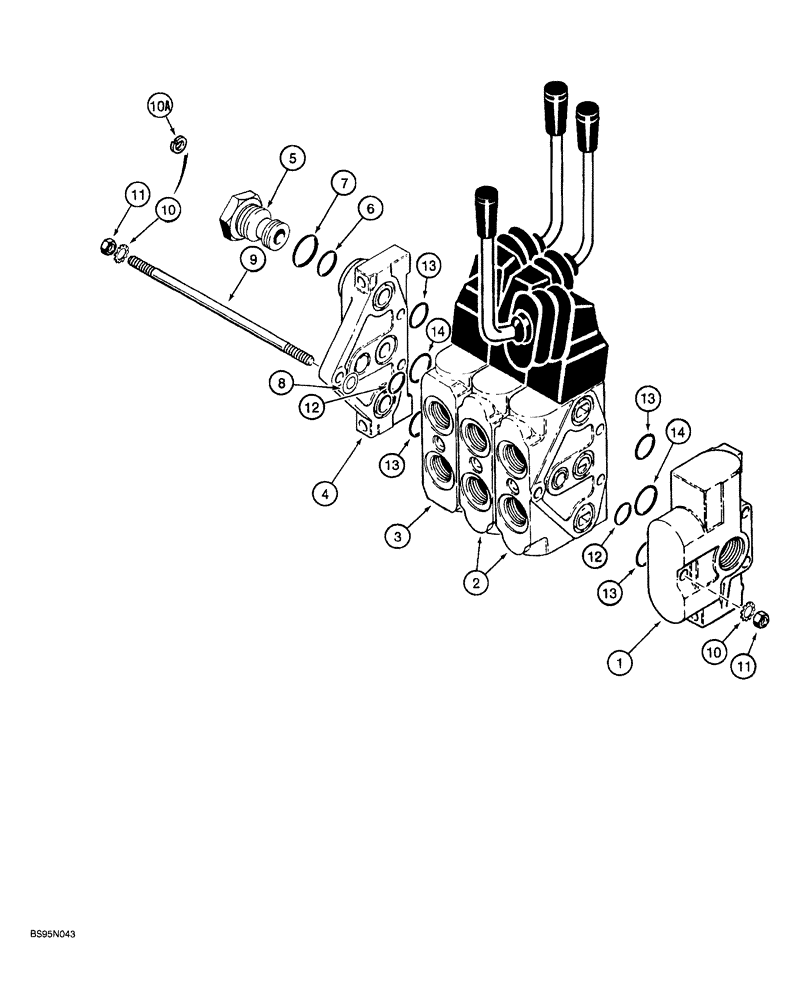

Запчасти Case 760 (08-158) - PLOW CONTROL VALVE - H672781 (35) - HYDRAULIC SYSTEMS

H672781

VALVE

ASSEMBLY, control, plow, parts list Figs. 8-156 - 8-164, Includes: Ref. 1 - 14

1шт.

1

H435550

ELEMENT

SECTION inlet

1шт.

2

H673146

ELEMENT

SECTION ASSEMBLY, lift and swing, parts list Fig. 8-162

2шт.

3

H673147

ELEMENT

SECTION ASSEMBLY, blade, parts list Fig. 8-164

1шт.

4

H435551

ELEMENT

SECTION ASSEMBLY, outlet, Includes: Ref. 5 - 8, also includes Refs. 12-14

1шт.

5

H438079

ADAPTER

PLUG

1шт.

6

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Plug

1шт.

7

G43000

O-RING

plug, large

1шт.

8

H438211

SHIM

body

1шт.

H673225

KIT

tie rod and seal, Includes: Ref. 9 - 14

1шт.

H674689

STUD

ROD ASSEMBLY, tie, Includes: Ref. 9 - 11

3шт.

9

NSS

NOT SOLD SEPARAT

ROD tie

1шт.

10

93-41039

LOCK WASHER,Ext Tooth, 3/8"

1-2шт.

10a

492-11038

LOCK WASHER,3/8"

1шт.

11

425-116

NUT,3/8" - 24, Gr 5

Hex

2шт.

N14040

SEAL KIT

KIT, intersection, Includes: Ref. 12 - 14

4шт.

12

NSS

NOT SOLD SEPARAT

O-RING body, small

1шт.

13

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

Body, medium

2шт.

14

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

Large

1шт.
