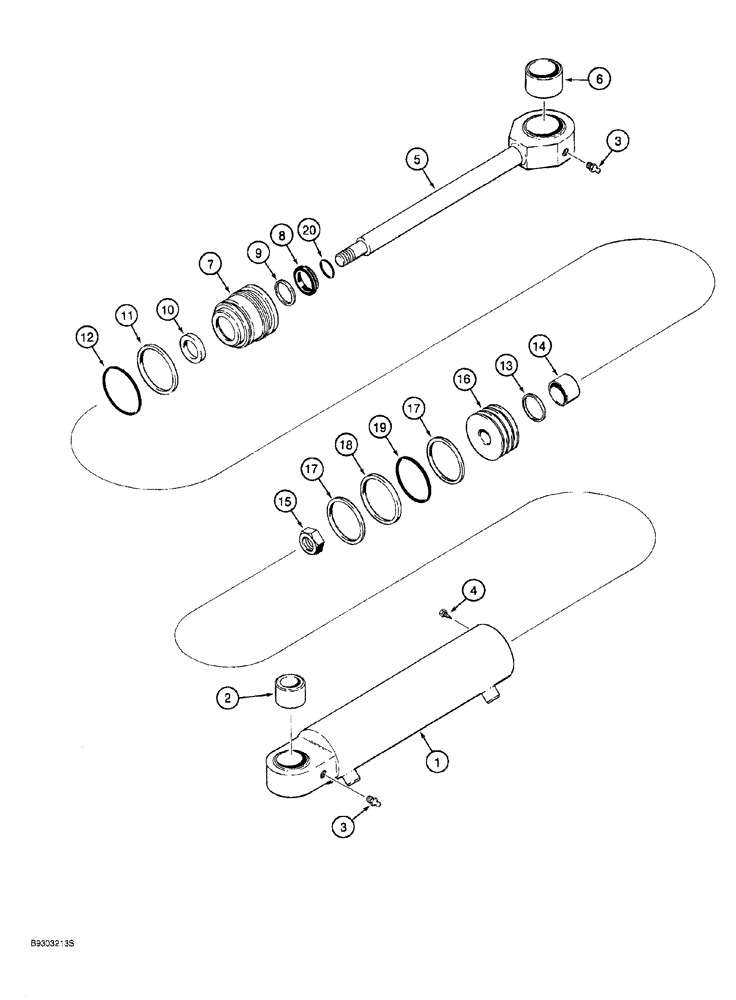

Запчасти Case 760 (08-157C) - PLOW BLADE STEERING CYLINDER ASSEMBLY - 111620A2 (35) - HYDRAULIC SYSTEMS

111620A2

CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, plow blade steering, used on plows with open lift cradle, see Fig. 9-127C for mounting, Includes: Ref. 1 - 20

1шт.

1

119353A2

TUBE

cylinder

1шт.

2

119364A1

BUSHING

cylinder tube

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

Part of Seal kit, P/N 119375A1

1шт.

5

119357A2

ROD

piston

1шт.

6

119366A1

BUSHING

piston rod

1шт.

7

119360A1

HEAD

GLAND cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal kit, P/N 119375A1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Seal kit, P/N 119375A1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL buffer

1шт.

Part of Seal kit, P/N 119375A1

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

Part of Seal kit, P/N 119375A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING, gland

1шт.

Part of Seal kit, P/N 119375A1

1шт.

13

NSS

NOT SOLD SEPARAT

RING gland locking

1шт.

Part of Seal kit, P/N 119375A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING wear

1шт.

Part of Seal kit, P/N 119375A1

1шт.

15

231-41310

LOCK NUT,5/8"-11, GB

hex, self-locking, 5/8 inch NC

1шт.

16

119367A1

PISTON

cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal kit, P/N 119375A1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal kit, P/N 119375A1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Seal kit, P/N 119375A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

119375A1

SEAL KIT

KIT, Includes: Ref. 4, 8 - 14, and 17 - 19

1шт.
