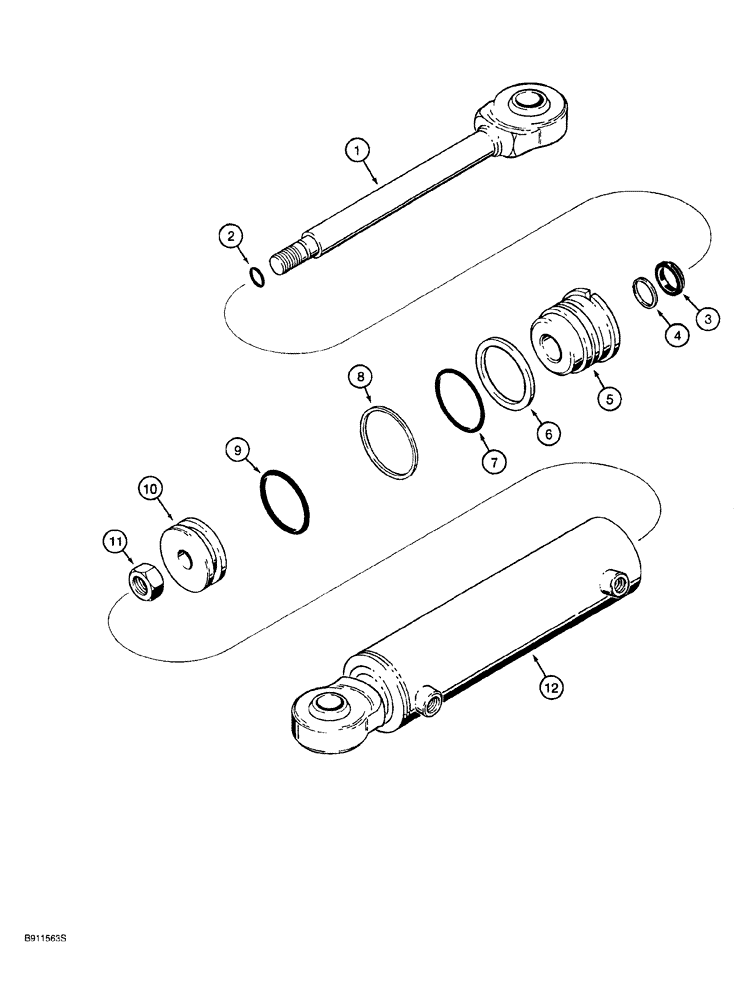

Запчасти Case 760 (08-157A) - PLOW BLADE STEERING CYLINDER ASSEMBLY - H674932 (35) - HYDRAULIC SYSTEMS

H674932

STEERING CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, plow blade steering, no longer used in this application, order 111620A2 cylinder assy. (see Fig. 8-157C) & 114879A1 spacer, see Fig. 9-127A for mounting, Includes: Ref. 1 - 12

1шт.

1

N8521

ROD

piston

1шт.

2

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

Piston rod

1шт.

3

H755793

RETAINER

WIPER piston rod

1шт.

Part of Seal Kit, P/N H674943

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Seal Kit, P/N H674943

1шт.

5

N8519

GLAND

cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

Part of Seal Kit, P/N H674943

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N H674943

1шт.

8

H207027

LOCK ASSY

WIRE gland

1шт.

Part of Seal Kit, P/N H674943

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit, P/N H674943

1шт.

10

H247023

PISTON

cylinder

1шт.

11

230-46112

LOCK NUT,3/4"-16, GA

hex, self-locking, 3/4 inch NF

1шт.

12

N8520

TUBE,1.01" ID x 2.5" OD x 13.84" L

TUBE

1шт.

H674943

GASKET KIT

seal, Includes: Ref. 3, 4 and 6 - 9

1шт.
