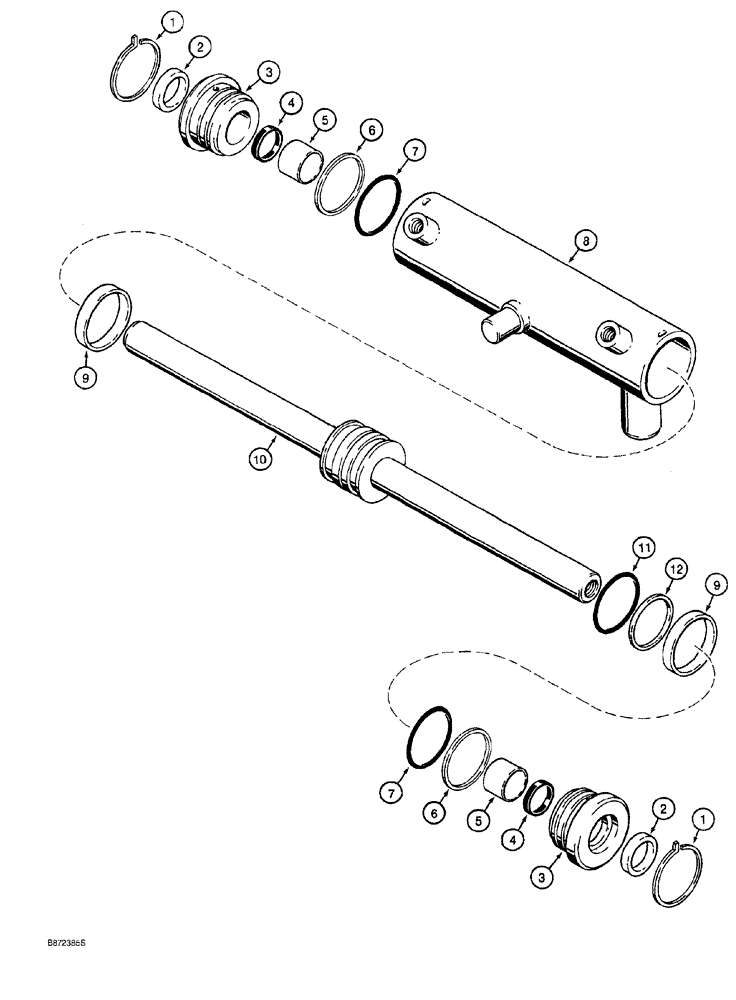

Запчасти Case 760 (08-156) - PLOW BLADE STEERING CYLINDER - H672766 (35) - HYDRAULIC SYSTEMS

H672766

CYLINDER ASSY.

2-1/2 (64) ID x 8 inch (203 mm) stroke, plow blade steering, see Fig. 9-126 for mounting, Includes: Ref. 1 - 12

1шт.

1

385133R1

RETAINING WIRE

WIRE, 7-3/4 inch (196 mm) long, cut from 140600C1 bulk, see below

2шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

2

NSS

NOT SOLD SEPARAT

WIPER piston rod

2шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

3

N14840

GLAND

cylinder

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL U-cup

2шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

5

NSS

NOT SOLD SEPARAT

PACKING gland

2шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

6

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

2шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING, gland

2шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

8

N14841

TUBE

cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

PACKING piston

2шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

10

N14839

PISTON ROD

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

12

NSS

NOT SOLD SEPARAT

RING backup, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N N14842

1шт.

140600C1

RETAINING WIRE

WIRE, bulk, 12-1/2 inch (319 mm) long

1шт.

N14842

SEAL KIT

cylinder seal repair, Includes: Ref. 1, 2, 4 - 7, 9, 11 and 12

1шт.
