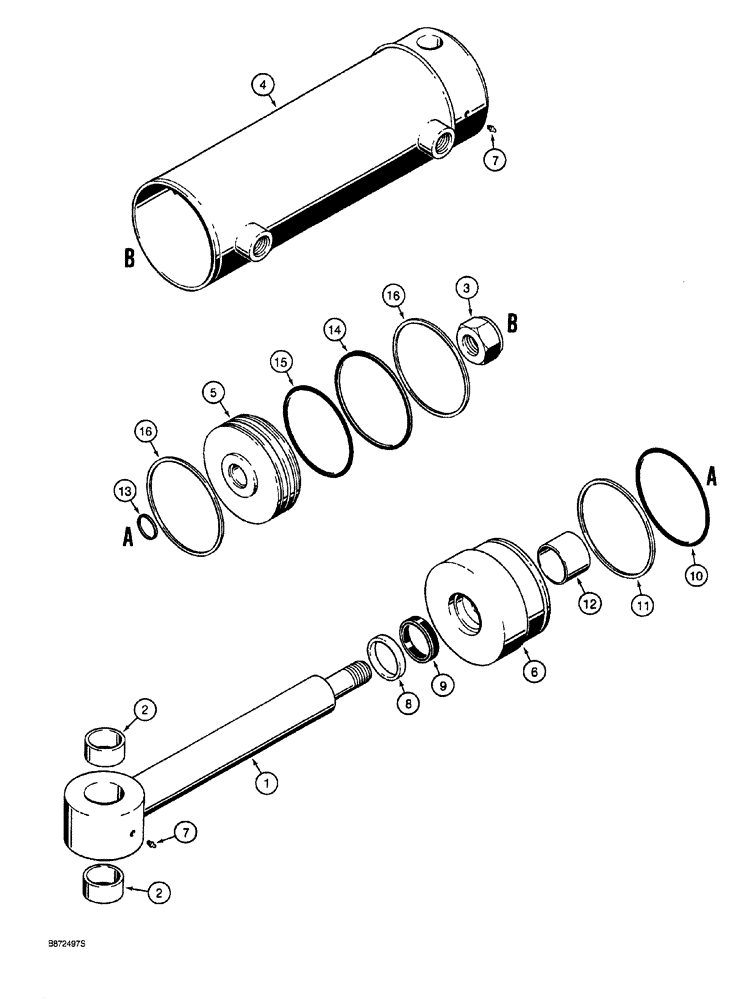

Запчасти Case 760 (08-154) - PLOW SWING CYLINDER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
H672672
CYLINDER
ASSEMBLY, 4 (102) ID x 6 inch (152 mm) stroke, plow swing, closed end of cylinder tube has a 1 inch ID hole for pin, no longer available, order H673704
2шт.
H673704
CYLINDER,101.6 mm ID x 327 mm L
ASSEMBLY, 4 (102) ID x 6 inch (152 mm) stroke, plow swing, closed end of cylinder tube has a 1-1/4 ID hole for pin, Includes: Ref. 1 - 16
2шт.
1
N14835
PISTON ROD
1шт.
2
H436772
BUSHING
cylinder rod, 3/4 inch O.D., if used
2шт.
2
107115A1
BUSHING
cylinder rod, 1 inch O.D., if used
2шт.
3
232-24020
LOCK NUT,1 1/4"-12, GB
1шт.
4
N14837
TUBE
cylinder, closed end of tube has 1 inch ID hole for mounting pin, used on H672672
1шт.
4
H436771
SLEEVE CYLINDER
closed end of tube has 1-1/4 inch ID hole for mounting pin, used on H673704
1шт.
5
N14850
PISTON
cylinder
1шт.
6
N14836
GLAND
cylinder
1шт.
7
219-17
LUBE NIPPLE,3/16" NPTF
Used on H672672 cylinder
2шт.
7
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
Special, Used on H673704 cylinder
2шт.
8
NSS
NOT SOLD SEPARAT
WIPER piston rod
1шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL U-cup
1шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING, gland
1шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
11
NSS
NOT SOLD SEPARAT
RING backup, gland
1шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
12
NSS
NOT SOLD SEPARAT
RING wear, gland
1шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING piston rod
1шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
14
NSS
NOT SOLD SEPARAT
SEAL piston
1шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING piston
1шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
16
NSS
NOT SOLD SEPARAT
RING wear, piston
2шт.
Part of Cylinder Seal Repair Kit, P/N N14838
1шт.
N14838
SEAL KIT
cylinder seal repair, Includes: Ref. 8 - 16
1шт.
