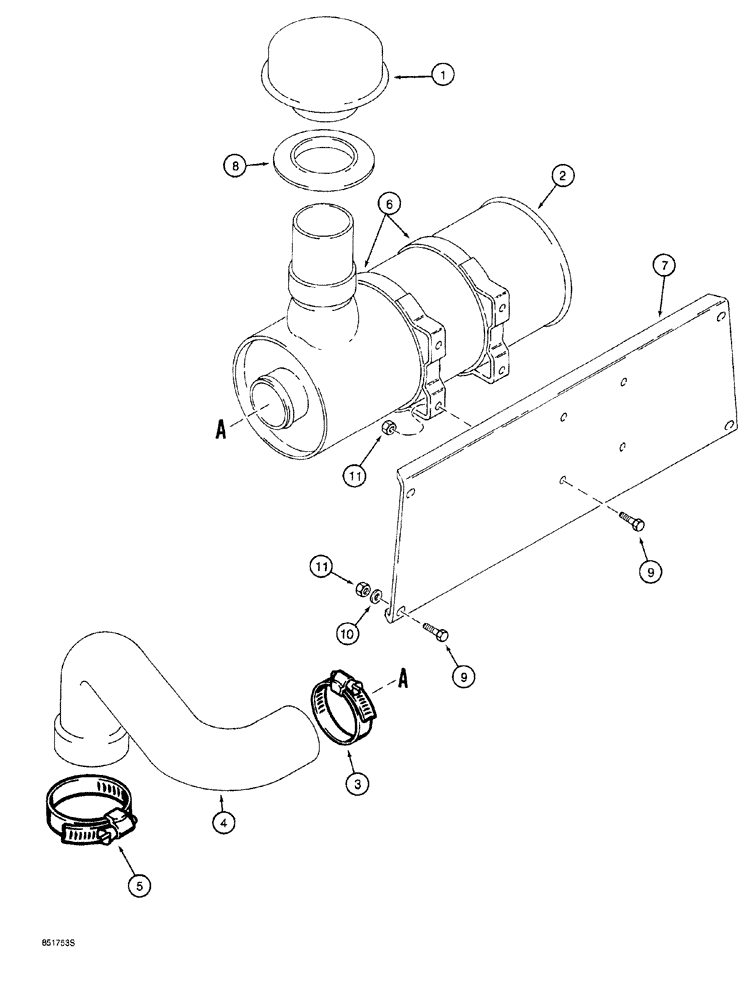

Запчасти Case 760 (02-006) - AIR CLEANER AND AIR INTAKE (10) - ENGINE

1

A61277

CAP

air cleaner

1шт.

2

A170974

AIR CLEANER

ASSEMBLY air, engine, parts list Fig. 2-8

1шт.

3

214-1444

HOSE CLAMP,58.6mm - 82.5mm

Adj., Hose to air cleaner

1шт.

4

H432302

INTAKE AIR HOSE,63.50 mm ID, 76.00 mm ID x 320.00 mm, SAE 20R4

air cleaner

1шт.

5

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

adj., 3-1/16 - 4 inch dia., hose to engine

1шт.

6

L113910

CLAMP

air cleaner mounting, includes hardware

2шт.

7

H432294

CHANNEL

BRACKET air cleaner mounting

1шт.

8

D93451

GROMMET

air intake tube

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

11

232-4116

NUT,3/8"-16, GC

8шт.
