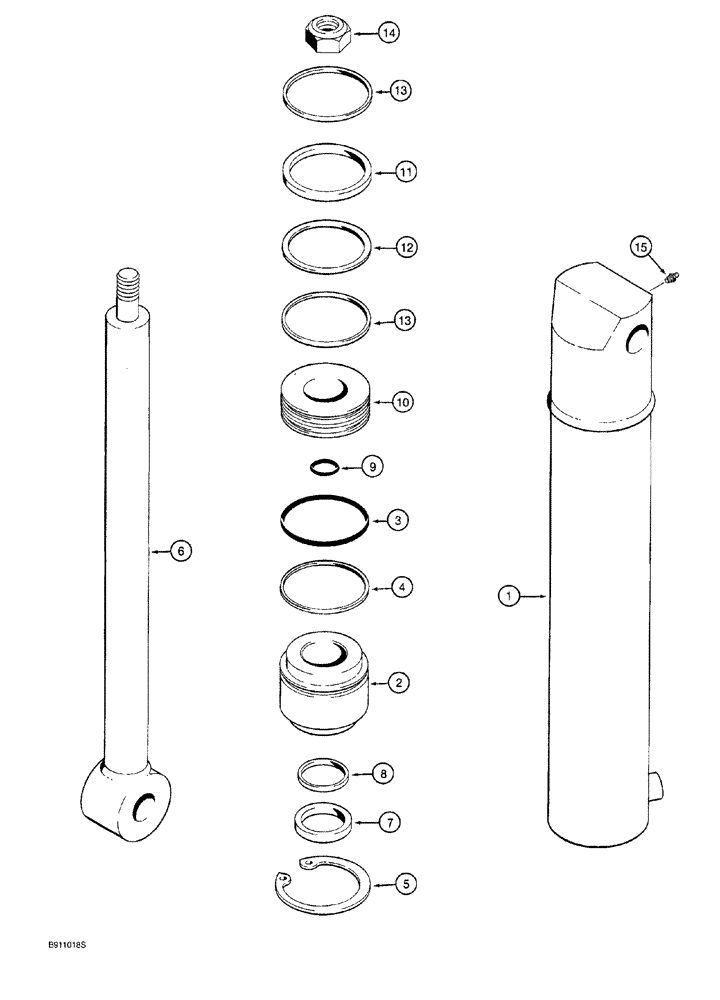

Запчасти Case 760 (08-153A) - PLOW LIFT CYLINDER ASSEMBLY - H673790 (35) - HYDRAULIC SYSTEMS

H673790

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 16-3/8 inch (461 mm) stroke, plow lift, used on plows with open cradle, see Fig. 9-125A for mounting, Includes: Ref. 1 - 15

1шт.

1

100435A1

TUBE

cylinder

1шт.

2

100434A1

HEAD

GLAND cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N 100437A1

1шт.

4

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N 100437A1

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining, gland

1шт.

6

100436A1

ROD

piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 100437A1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 100437A1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RINGpiston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 100437A1

1шт.

10

85179C1

PISTON

cylinder, replaces 100433A1

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Cylinder Seal Repair Kit, P/N 100437A1

1шт.

12

NSS

NOT SOLD SEPARAT

RING backup, piston seal

1шт.

Part of Cylinder Seal Repair Kit, P/N 100437A1

1шт.

13

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Cylinder Seal Repair Kit, P/N 100437A1

1шт.

14

H438714

LOCK NUT,7/8" - 14

hex, self-locking

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

100437A1

SEAL KIT

cylinder seal repair, Includes: Ref. 3, 4, 7- 9 and 11 - 13

1шт.
