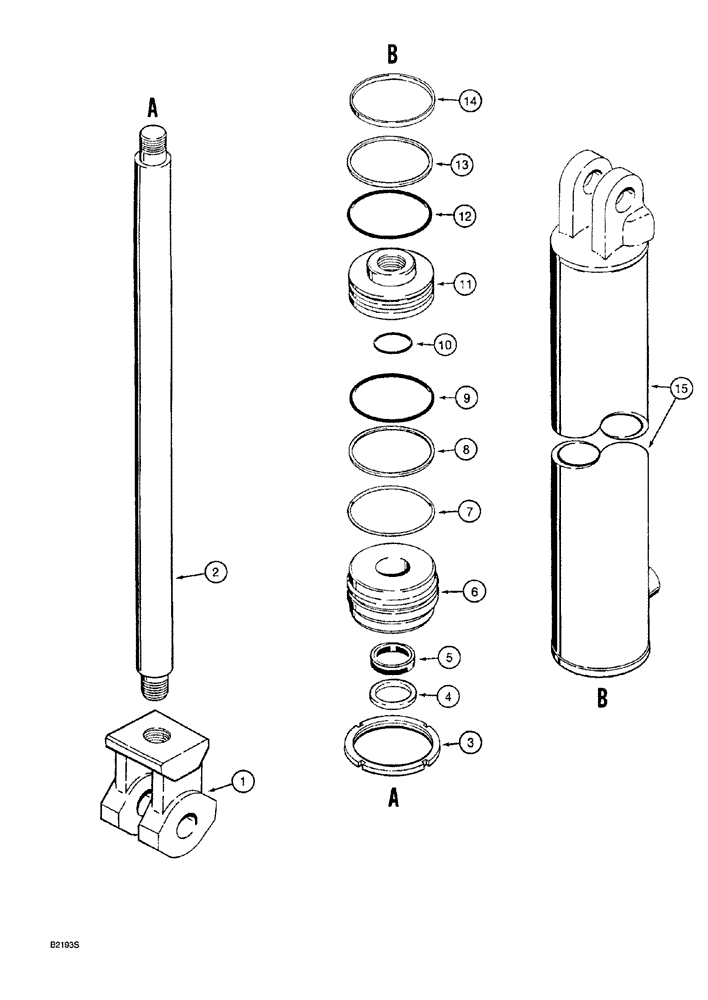

Запчасти Case 760 (08-152) - PLOW LIFT CYLINDER - H673243, IDENTIFIED BY SQUARE-TYPE CYLINDER ROD END (35) - HYDRAULIC SYSTEMS

H673243

CYLINDER ASSY.

3-1/2 (89) ID x 20 inch (508 mm) stroke, plow lift, Includes: Ref. 1 - 15

1шт.

1

H436041

STEM

END cylinder rod

1шт.

2

N14822

PISTON ROD/GLAND

1шт.

3

573697R1

BEARING LOCK NUT

special, gland retaining

1шт.

4

A41785

WIPER SEAL

piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

6

H436042

BEARING

GLAND cylinder

1шт.

7

T52507

RING, SNAP

RING SNAP locking

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

9

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

Gland

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

10

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

11

H436043

PISTON

cylinder

1шт.

12

238-6235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 6, 90 Duro

Piston

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

13

H94326

SEAL

piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

14

NSS

NOT SOLD SEPARAT

RING wear

1шт.

Part of Cylinder Seal Repair Kit, P/N H673373

1шт.

15

H436044

JACK BODY

TUBE cylinder

1шт.

H673373

KIT

cylinder seal repair, Includes: Ref. 4, 5, 7 - 10 and 12 - 14

1шт.
