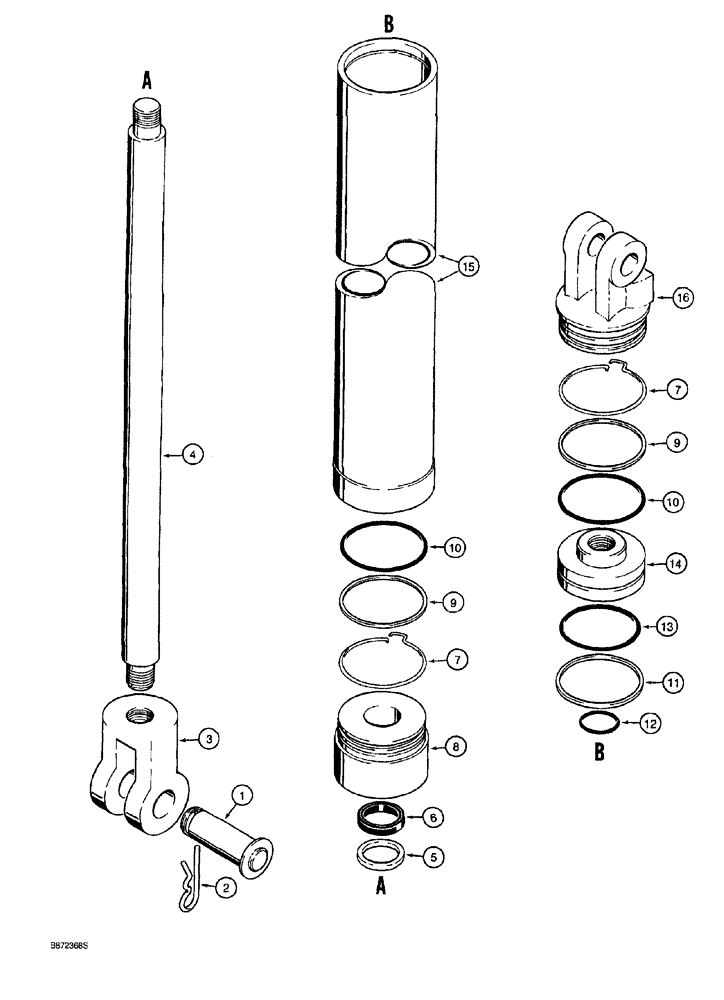

Запчасти Case 760 (08-150) - PLOW LIFT CYLINDER - H672655, IDENTIFIED BY ROUND-TYPE CYLINDER ROD END (35) - HYDRAULIC SYSTEMS

H672655

CYLINDER ASSY.

3-1/2 (89) ID x 20 inch (508 mm) stroke, plow lift, complete cylinder assembly, no longer available, order H673243 cylinder assy. parts list Fig. 8-152, Includes: Ref. 1 - 16

1шт.

1

N14001

CLEVIS PIN

1шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

3-13/16" lg, Hair, Retaining

1шт.

3

N14821

STEM

END cylinder rod

1шт.

4

N14822

PISTON ROD/GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N14827

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N14827

1шт.

7

NSS

NOT SOLD SEPARAT

RING locking

2шт.

Part of Cylinder Seal Repair Kit, P/N N14827

1шт.

8

N14823

GLAND

cylinder

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland and cylinder head O-ring

2шт.

Part of Cylinder Seal Repair Kit, P/N N14827

1шт.

10

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

Gland and cylinder head

2шт.

Part of Cylinder Seal Repair Kit, P/N N14827

1шт.

11

H94326

SEAL

piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N14827

1шт.

12

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N14827

1шт.

13

238-6235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 6, 90 Duro

Piston

1шт.

Part of Cylinder Seal Repair Kit, P/N N14827

1шт.

14

H436043

PISTON

cylinder, replaces N14824

1шт.

15

N14825

TUBE ASSY.

cylinder

1шт.

16

N14826

HEAD (CYLINDER)

1шт.

N14827

SEAL KIT

cylinder seal repair, Includes: Ref. 5 - 7 and 9 - 13

1шт.
