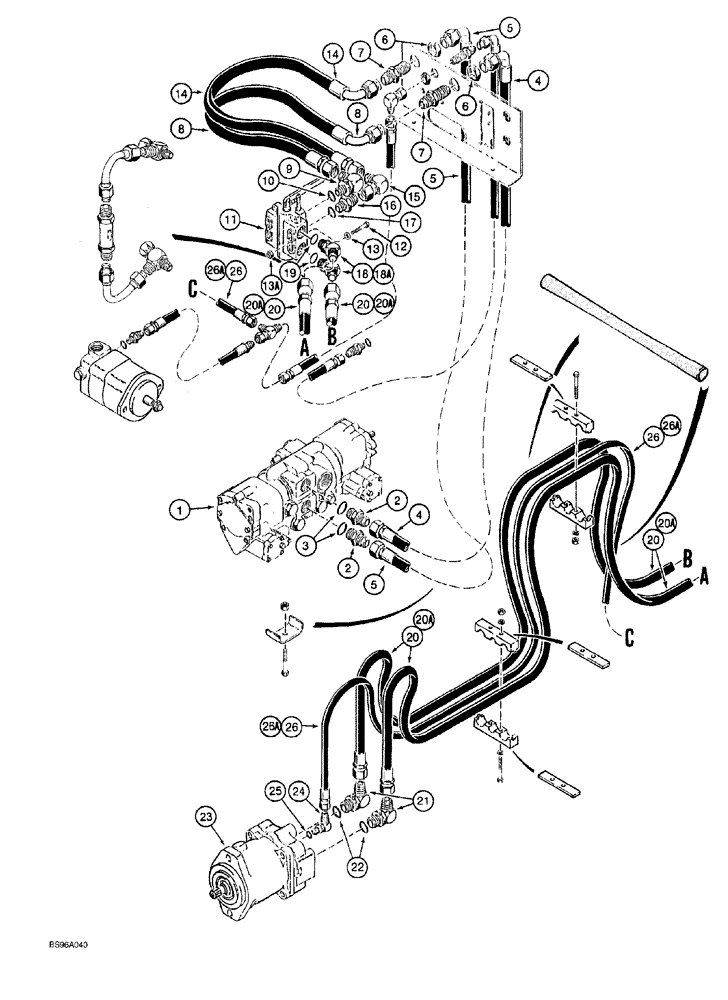

Запчасти Case 760 (08-146) - PLOW HYDRAULIC CIRCUIT, PLOW MOTOR SUPPLY AND RETURN LINES, UNITS W/REVERSED QUAD OPTION (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, parts list Figs. 6-14 through 6-24, if used, see Fig. 6-12 for pump identification

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

H433606

HOSE

76 inch (1925 mm) long, tandem pump to right-hand bulkhead adapter

1шт.

5

H433607

HOSE

76 inch (1925 mm) long, tandem pump to left-hand bulkhead adapter

1шт.

6

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

7

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

straight, 1-5/16-12 inch flare x bulkhead flare

2шт.

8

H433136

HOSE

44 inch (1.125 mm) long, right-hand bulkhead adapter to selector valve

1шт.

9

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj. O-ring boss, Includes: Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

H672979

VALVE

ASSEMBLY, selector, trencher/plow, parts list Fig. 8-166

1шт.

12

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

13a

232-4116

NUT,3/8"-16, GC

2шт.

14

H433685

HOSE

38-3/8 inch (975 mm) long, left-hand bulkhead adapter to selector valve

1шт.

15

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

ELBOW, 90 degree, 1-5/16-12 inch flare x swivel

1шт.

16

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, Incl. Ref 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj. O-ring, prior to P.I.N. JAF0104938, Includes Ref. 19

2шт.

18a

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, P.I.N. JAF0104938 and after, includes Ref. 19

2шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

H436306

HOSE

118 inch (3000 mm) long, plow motor loop, prior to P.I.N. JAF0104938

2шт.

20a

H438196

HOSE ASSY.

118-1/8 inch (3000 mm) long, plow motor loop, P.I.N. JAF0104938 and after

2шт.

21

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 22

2шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

23

REF

INSTRUCTION

MOTOR ASSEMBLY, plow, see Fig. 6-26 or 6-28 for correct assembly and components

1шт.

24

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ELBOW, 90 degree, 7/8-14 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

H436307

HOSE

118 inch (3000 mm) long, plow motor drain, prior to P.I.N. JAF0104938

1шт.

26a

H438084

HOSE ASSY.

115 inch (2921 mm) long, plow motor drain, P.I.N. JAF0104938 and after

1шт.

27

H434912

VALVE

CLAMP hose

4шт.

27a

H438204

BAR

clamp

3шт.

28

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

29

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

30

492-11038

LOCK WASHER,3/8"

6шт.

31

232-4116

NUT,3/8"-16, GC

4шт.

32

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 inch flare branch x flare x swivel

1шт.

33

H276105

HYDRAULIC HOSE,12.70 mm ID x 1473.20 mm, SAE 100R1

Tee to adapter at trencher motor

1шт.

34

REF

INSTRUCTION

MOTOR ASSEMBLY, trencher drive, see Fig. 8-108 or 8-112 for correct assembly and components

1шт.

35

H234690

HYDRAULIC HOSE,12.70 mm ID x 457.20 mm, SAE 100R1

Trencher Motor Drain

1шт.

36

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

37

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

38

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER straight, 7/8-14 inch flare x bulkhead flare

1шт.

39

H433208

HOSE ASSY.

26 inch (650 mm) long, return, motor dram, bulkhead plate to ground drive motor

1шт.

40

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 41

2шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

42

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

1шт.

43

H231878

CLAMP

hoses, used to clamp Refs. 4 and 5 on Fig. 8-146 to underside of right-hand transmission mounting bracket

1шт.

44

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

1шт.

45

107330A1

TUBE,19.05 mm OD, 125.5, 97.1 mm Length

selector valve "C" port to check valve, if used

1шт.

46

L126503

VALVE, CHECK

if used

1шт.

47

107782A1

TUBE,19.05 mm OD, 301.8, 90.2 mm Length

selector valve "D" port to check valve, if used

1шт.

48

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

If used

2шт.

49

H438500

SLEEVE

nylon, plow to selector valve hoses, if used

2шт.
