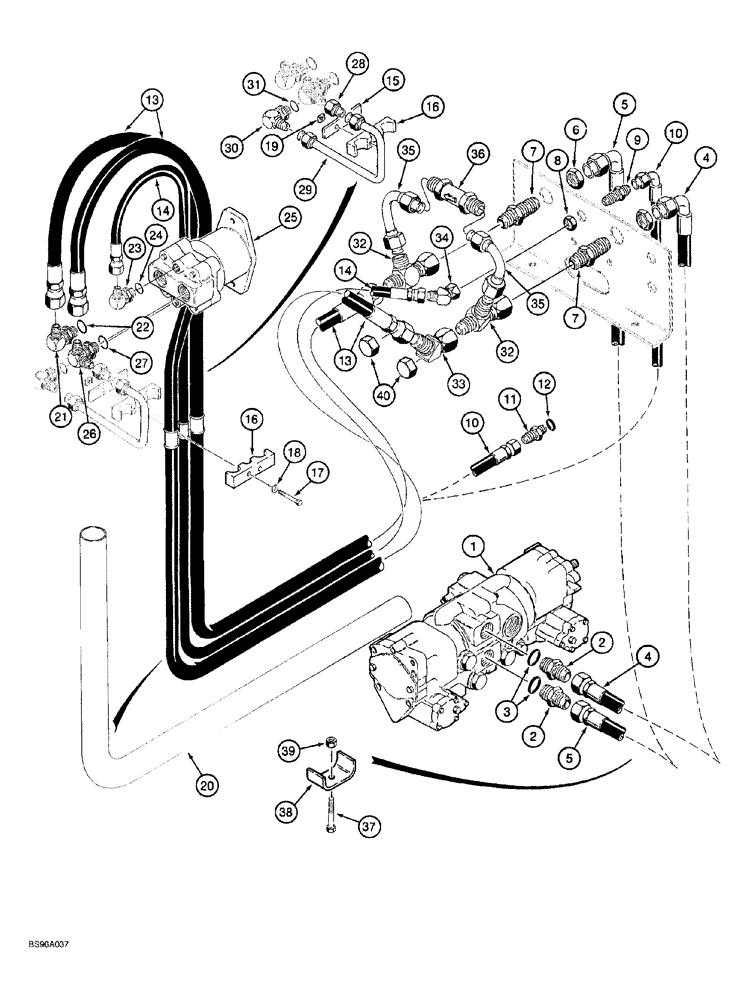

Запчасти Case 760 (08-141A) - PLOW HYD. CIRCUIT PLOW MOTOR SUPPLY & RETURN LINES, P.I.N. JAF0104938 AND AFT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, parts list Figs.6-14 through 6-24, see Fig. 6-12 for identification

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

H433606

HOSE

76 inch (1925 mm) long, tandem pump to right-hand bulkhead adapter

1шт.

5

H433607

HOSE

76 inch (1925 mm) long, tandem pump "D" port to left-hand bulkhead adapter

1шт.

6

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

7

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

straight, 1-5/16-12 inch flare x bulkhead flare

2шт.

8

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

9

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER straight, 7/8-14 inch flare x bulkhead flare

1шт.

10

H433208

HOSE ASSY.

26 inch (650 mm) long, return, motor drain, bulkhead plate to ground drive motor

1шт.

11

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H438196

HOSE ASSY.

118-1/8 inch (3000 mm) long, rear bulkhead plate to plow motor, "A" and "B" ports

2шт.

14

H438084

HOSE ASSY.

115 inch (2921 mm) long, plow motor to rear bulkhead plate, case drain

1шт.

15

H438204

BAR

clamp

1шт.

16

H439256

BLOCK

clamp

2шт.

17

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

19

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

20

H438197

SLEEVE

nylon, plow motor hoses

2шт.

21

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj. O-ring boss, Includes: Ref. 22

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

23

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ELBOW, 90 degree, 7/8-14 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

H673911

HYDRAULIC MOTOR

ASSEMBLY, plow, parts list Fig. 6-28

1шт.

26

103754A1

ELBOW,90 Degree, 1 5/16" ORB x 1 1/16"-12 JIC

ELBOW, 90 degree, special, Includes: Ref. 27

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

H439323

FITTING

RESTRICTOR straight, 0.0595 inch orifice

1шт.

29

102567A1

TUBE,12.7 mm OD, 167.8, 81.8 mm Length

plow motor flush

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

218-5412

TEE,37 Degree, 7/8"-14x1 1/16"-12, Fem Sw Runx1 1/16"-12 Br

1-1/16-12 flare branch x flare x 1-5/16-12 swivel

2шт.

33

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

ELBOW, 45 degree, 1-1/16-12 inch flare x swivel

1шт.

34

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

35

107330A1

TUBE,19.05 mm OD, 125.5, 97.1 mm Length

tee to check valve

2шт.

36

L126503

VALVE, CHECK

at rear bulkhead plate

1шт.

37

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

1шт.

38

H231878

CLAMP

used to clamp items 4 and 5 to underside of right-hand transmission mounting bracket

1шт.

39

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

1шт.

40

218-754

CAP,37 Degree, 9/16"-18

Hex

2шт.
