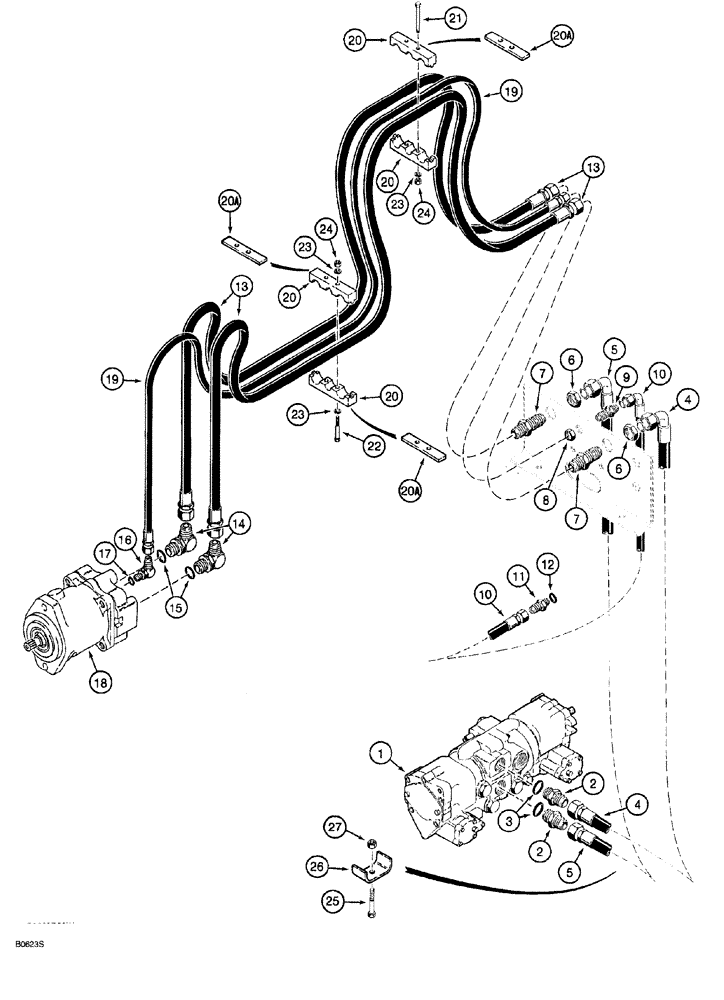

Запчасти Case 760 (08-140) - PLOW HYD. CIRCUIT, PLOW MOTOR SUPPLY & RETURN LINES, UNITS WITHOUT QUAD OPTION (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, parts list Figs. 6-14 through 6-24, see Fig. 6-12 for identification

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

H433606

HOSE

76 inch (1925 mm) long, tandem pump to right-hand bulkhead adapter

1шт.

5

H433607

HOSE

76 inch (1925 mm) long, tandem pump "D" port to left-hand bulkhead adapter

1шт.

6

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

7

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

straight, 1-5/16-12 inch flare x bulkhead flare

2шт.

8

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

9

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER straight, 7/8-14 inch flare x bulkhead flare

1шт.

10

H433208

HOSE ASSY.

26 inch (650 mm) long, return, motor drain, bulkhead plate to ground drive motor

1шт.

11

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H436306

HOSE

118 inch (3000 mm) long, plow motor loop

2шт.

14

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ELBOW 90 degree, 7/8-14 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

REF

INSTRUCTION

MOTOR ASSEMBLY, plow, see Fig. 6-26 or 6-28 for correct assembly and components

1шт.

19

H436307

HOSE

118 inch (3000 mm) long, plow motor drain

1шт.

20

H434912

VALVE

CLAMP hose

4шт.

20a

H438204

BAR

clamp

3шт.

21

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

22

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

23

492-11038

LOCK WASHER,3/8"

6шт.

24

232-4116

NUT,3/8"-16, GC

4шт.

25

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

1шт.

26

H231878

CLAMP

used to clamp Refs. 4 and 5 to underside of right-hand transmission mounting bracket

1шт.

27

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

1шт.

28

218-754

CAP,37 Degree, 9/16"-18

Hex, Used to cap off trencher lift circuit lines on models with plow and without trencher, not shown

2шт.
