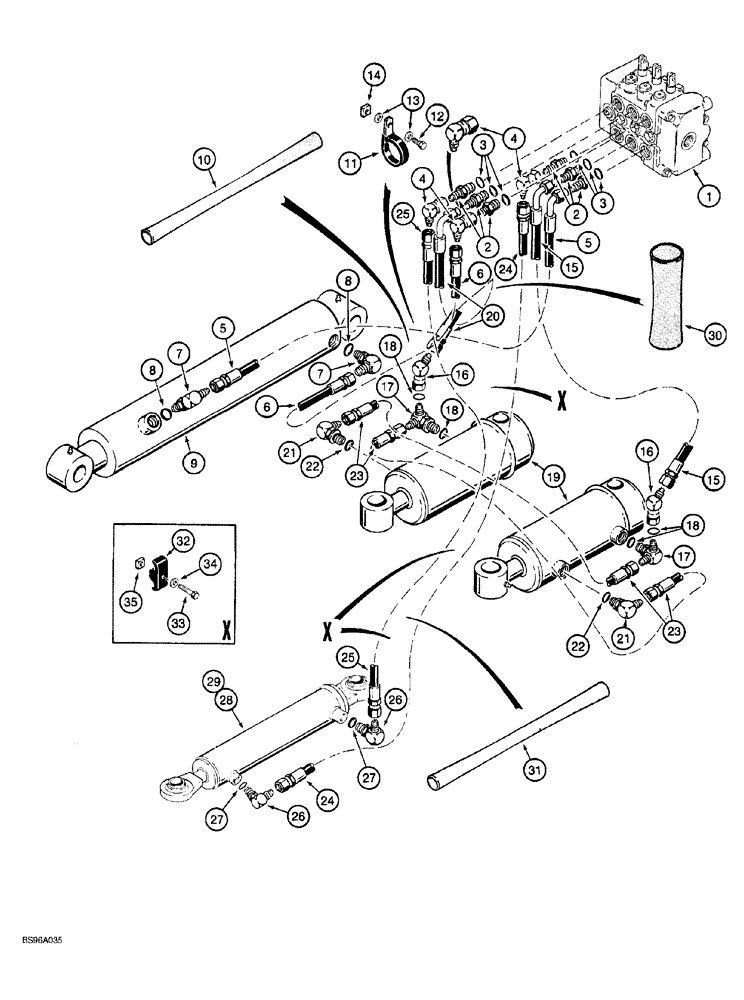

Запчасти Case 760 (08-139A) - PLOW HYD. CIRCUIT, PLOW CONTROL VALVE TO PLOW CYLINDERS, P.I.N. JAF0104938 AND AFTER (35) - HYDRAULIC SYSTEMS

1

H674318

VALVE

ASSEMBLY, control, plow, parts list Figs. 8-165A - 8-165G, see Fig. 9-123A for mounting

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

6шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

5

H438089

HOSE ASSY.

51-1/2 inch (1310 mm) long, plow control valve to plow lift cylinder, rod end

1шт.

6

H438081

HOSE ASSY.

43-3/4 inch (1110 mm) long, plow control valve to plow lift cylinder, closed end

1шт.

7

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree, 9/16-18 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 8

2шт.

9

H673790

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 16-3/8 inch (461 mm) stroke, plow lift, parts list Fig. 8-153A

1шт.

10

H436615

LINING

SLEEVE nylon, lift hoses

1шт.

11

27843R1

CLAMP

1-3/4 inch

1шт.

12

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

14

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

15

H438000

HOSE ASSY.

23-1/2 inch (597 mm) long, plow control valve to right-hand plow swing cylinder, closed end

1шт.

16

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

2шт.

17

H428623

TEE

special, Includes: Ref. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

H673704

CYLINDER,101.6 mm ID x 327 mm L

ASSEMBLY, 4 (102) ID x 6 inch (152 mm) stroke, plow swing, parts list Fig.8-154, see Fig. 9-123A for mounting

2шт.

20

H438201

HOSE ASSY.

44-3/4 inch (1136 mm) long, plow control valve to left-hand plow swing cylinder, closed end

1шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

H435080

HOSE ASSY.

30 inch (762 mm) long, swing cylinder to swing cylinder

2шт.

24

H438198

HOSE ASSY.

103-5/32 inch (2620 mm) long, plow control valve to plow steering cylinder, rod end

1шт.

25

H438199

HOSE ASSY.

98 inch (2490 mm) long, plow control valve to plow blade steering cylinder, closed end

1шт.

26

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 27

2шт.

28

H674932

STEERING CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, plow blade steering, parts list Fig. 8-157A, no longer used in this application, order 111620A2 cylinder assy. (Ref. 36A) & 114879A1 spacer, see Fig. 9-127A for mounting

1шт.

29

111620A2

CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, plow blade steering, parts list Fig. 8-157C, see Fig. 9-127C for mounting, if used

1шт.

30

H438203

SLEEVE

nylon, plow cylinder hoses

1шт.

31

H434724

LOOM

nylon, 39-3/8 inch (1000 mm) long, plow blade steering cylinder hoses, replaces D131789

1шт.

32

D120679

CLAMP,Tube, 1/2"

hose

3шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

34

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

35

H165340

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm, SAE 100R1

Valve Port End and Right-Hand Swing Cylinder Hose, Cylinder End, Not Shown

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
