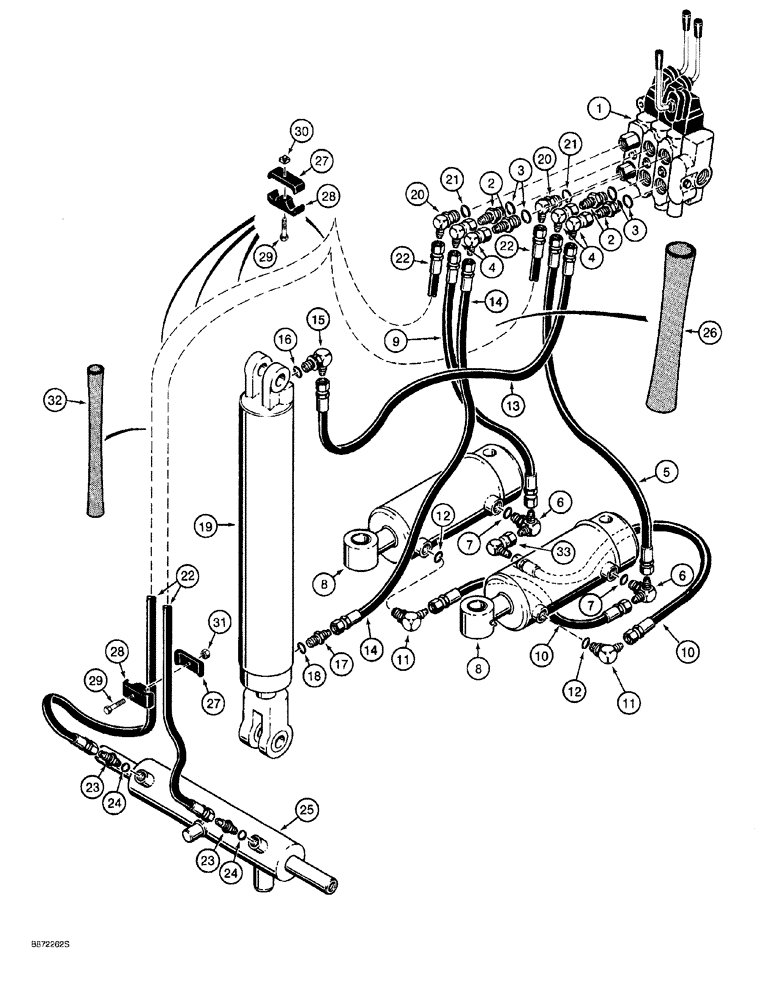

Запчасти Case 760 (08-138) - PLOW HYDRAULIC CIRCUIT, PLOW CONTROL VALVE TO PLOW CYLINDERS, PRIOR TO P.I.N. JAF0104938 (35) - HYDRAULIC SYSTEMS

1

H672781

VALVE

ASSEMBLY, control, parts list Figs. 8-158 through 8-164, see Fig. 9-122 for control valve mounting

1шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

5

H248989

HYDRAULIC HOSE,6.35 mm ID x 685.40 mm, SAE 100R1

Plow Control Valve to Right-Hand Plow Swing Cylinder, Closed End

1шт.

6

H428623

TEE

special, Includes: Ref. 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY, 4 inch ID x 6 inch stroke, plow swing, see Fig. 8-154 for correct assembly and components

2шт.

9

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

Plow Control Valve to Left-Hand Plow Swing Cylinder, Closed End

1шт.

10

H435080

HOSE ASSY.

30 inch (762 mm) long, Serial Range: cylinder-cylinder

2шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H243790

HYDRAULIC HOSE,6.35 mm ID x 1473.20 mm, SAE 100R1

Plow Control Valve to Plow Lift Cylinder, Closed End

1шт.

14

H362418

HOSE

48 inch (1219 mm) long, plow control valve to plow lift cylinder, rod end

1шт.

15

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY, 3-1/2 inch ID x 20 inch stroke, plow lift, see Figs. 8-150 - 8-153A for correct assembly and components

1шт.

20

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree, 9/16-18 flare x 7/8-14 inch adj. O-ring boss, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

1254530C2

HYDRAULIC HOSE

130 inch (3300 mm) long, plow control valve to plow blade steering cylinder, replaces H37364

2шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 24

2шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, plow blade steering, see Figs.8-156 or 8-157A for correct assembly and components

1шт.

26

H434979

SLEEVE

hose retaining

1шт.

27

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

plastic, hose

5шт.

28

D120679

CLAMP,Tube, 1/2"

hose

5шт.

29

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

30

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

31

232-4116

NUT,3/8"-16, GC

1шт.

32

H434724

LOOM

SLEEVE nylon, 39-3/8 inch (1000 mm) long, replaces D131789

1шт.

33

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
