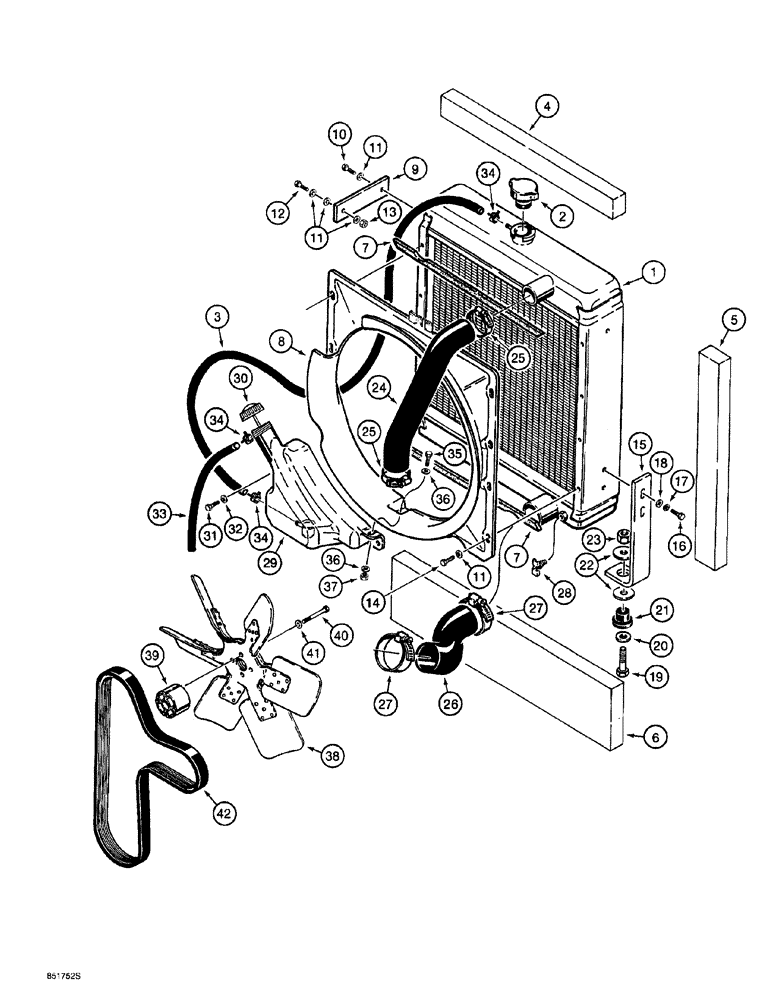

Запчасти Case 760 (02-002) - RADIATOR, FAN, AND MOUNTING (10) - ENGINE

1

A172038

RADIATOR

engine coolant, replaces A172477

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

Cut from L126767 bulk hose, Radiator to coolant recovery bottle, See below

1шт.

4

H433687

BAFFLE radiator, top, 2-3/16 (55) x 22 inch (560 mm), cut from D92228 bulk pad, see below

1шт.

5

H433688

BAFFLE radiator, side, 2-9/16 (65) x 22-5/8 inch (575 mm), cut from D92228 bulk pad, see below

2шт.

6

H433689

BAFFLE radiator, bottom, 6-3/4 (170) x 28 inch (710 mm), cut from D92228 bulk pad, see below

1шт.

7

A173165

SEALING STRIP

fan shroud, radiator

2шт.

8

A173459

SHROUD

fan

1шт.

9

H433231

STRAP

radiator mounting, side

2шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

15шт.

12

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

13

230-4215

NUT,5/16"-18, GA

2шт.

14

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

7шт.

15

H433373

BRACKET

radiator support

2шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

17

492-11031

LOCK WASHER,5/16"

4шт.

18

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

19

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

2шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

21

CASL13142

BUSHING

MOUNT isolator, rubber

2шт.

22

B15606

WASHER

flat, special

4шт.

23

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

2шт.

24

L114069

RADIATOR HOSE,44.40 mm ID x 304.80 mm, SAE 20R4 Class C

Upper

1шт.

25

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

Adjustable, Upper radiator hose

2шт.

26

NLS

NO LONGER SERVICED

HOSE,LARGE Lower, Replaces A170644

1шт.

27

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

Adj, Lower radiator hose

2шт.

28

217-103

COCK, DRAIN

VALVE, 1/4 inch PT, radiator drain

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.

D92228

BAFFLE

bulk pad, 35-1/2 (900 mm) x 55-1/8 (1400 mm) x 1-1/2 inch (38 mm)

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.

29

A171805

RESERVOIR

coolant recovery

1шт.

30

A184079

CAP

coolant recovery reservoir, replaces A171929

1шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

32

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

33

D128547

HOSE,7.9 mm ID x 300.00 mm, SAE 30R6

Cut from S120317X Bulk Hose, Coolant Recovery Reservoir Overflow, See Below

1шт.

34

A171099

HOSE CLAMP,13.2mm - 15.4mm

hose

3шт.

35

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

37

230-4215

NUT,5/16"-18, GA

1шт.

38

A171552

FAN

suction, 6 blade, cooling

1шт.

39

A172588

SPACER

fan

1шт.

40

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

4шт.

41

H426775

WASHER

flat, special, hardened

4шт.

42

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Fan, engine, Replaces J903091

1шт.

S120317X

HOSE

bulk, 5/16 (8) ID x 300 inch (7620 mm) long

1шт.
