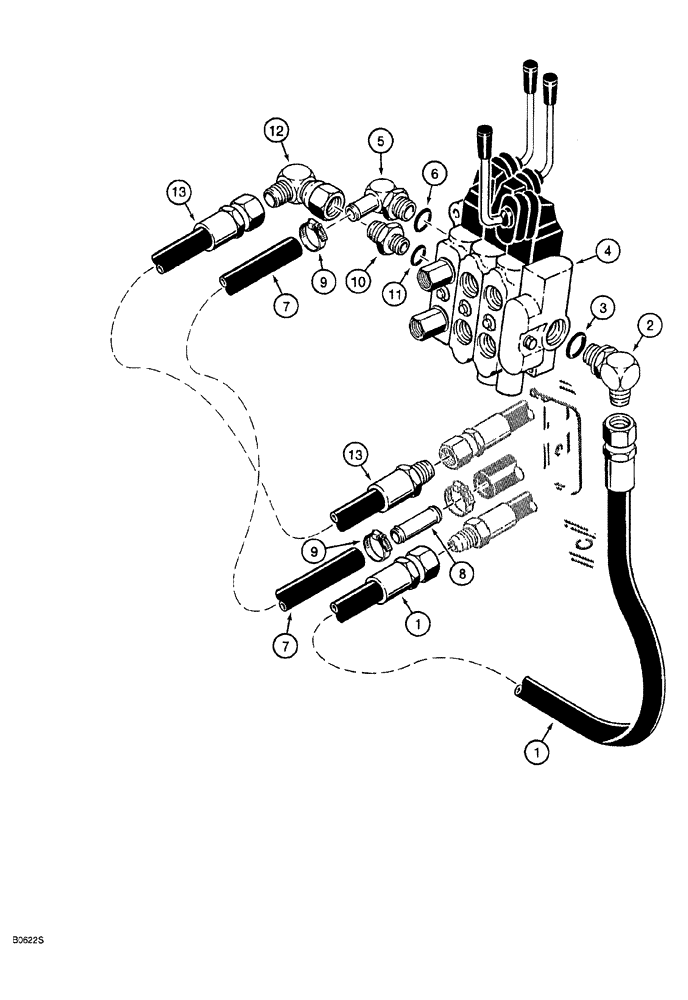

Запчасти Case 760 (08-136) - PLOW HYD. CIRCUIT, PLOW CONTROL VALVE SUPPLY & RETURN LINES, UNITS W/ QUAD & REVERSED QUAD OPTION (35) - HYDRAULIC SYSTEMS

1

H433854

HOSE ASSY.

30-1/2 inch (775 mm) long, plow control valve supply

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

H672781

VALVE

ASSEMBLY, control, parts list Figs. 8-158 through 8-164, see Fig. 9-122 for control valve mounting

1шт.

5

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Incl. Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

H309039

LARGE HOSE

HOSE,LARGE 38 inch (965 mm) long, cut from H379214 bulk hose, return, see below

1шт.

8

H435545

CONNECTOR, ELEC

CONNECTOR TUBE connector, hose

1шт.

9

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Straight, O-Ring boss, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

13

H435526

HYDRAULIC HOSE,15.88 mm ID x 940.00 mm, SAE 100R2

Power beyond

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.
